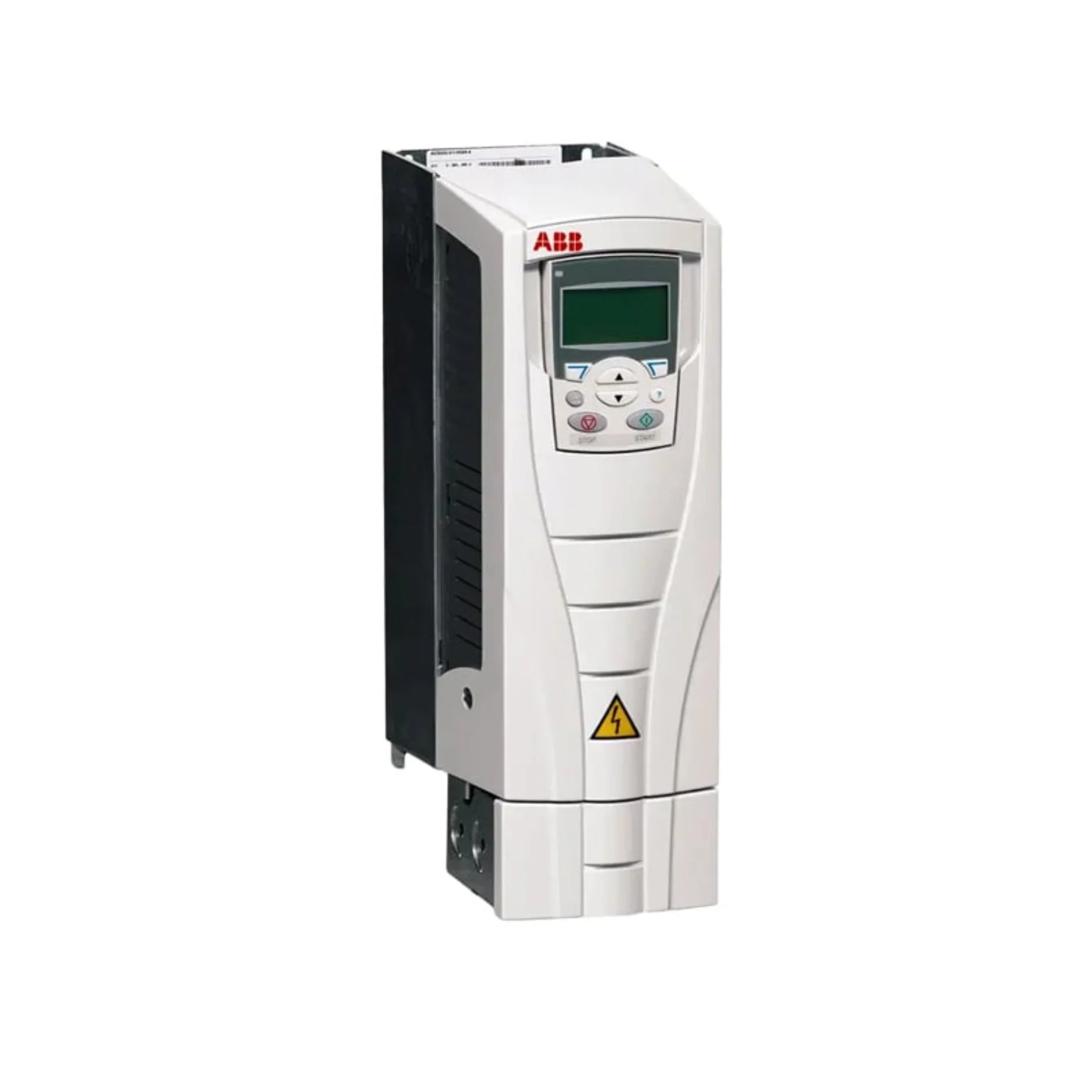

ABB ACS550-01-023A-4 | 3AUA0000002417-D

Overview

The ABB ACS550-01-023A-4 is a meticulously engineered 11 kW (15 HP) general-purpose variable frequency drive (VFD), designed to provide unparalleled motor control efficiency and reliability across a diverse range of industrial applications. This robust unit operates seamlessly on a 380–480 V 3-phase AC input and features an IP21 wall-mounted enclosure, ensuring ease of installation and integration into various industrial environments. As part of ABB's esteemed ACS550 series, this VFD stands out for its balanced blend of performance, user-friendliness, and advanced protective features, making it an ideal choice for businesses aiming to optimize their operational efficiency and reduce energy consumption.

The ACS550-01-023A-4, with its ABB Type Designation and Product ID 3AUA0000002417-D, is not just a motor controller; it’s a strategic investment in energy management and process optimization. Its sophisticated design allows for precise speed and torque control, which translates into smoother operations, reduced mechanical wear, and significant energy savings, particularly in applications with varying load demands. The drive’s capability to handle both constant and variable torque loads makes it exceptionally versatile.

Key Features

• Motor Power: 11 kW (15 HP) – Optimized for a broad spectrum of industrial motors.
• Input Voltage: 380–480 V AC, 3-phase – Compatible with standard industrial power supplies.
• Output Current: 23 A – Delivers stable and powerful output for demanding applications.
• Output Frequency: 0 to 500 Hz – Provides extensive control over motor speed.
• Control Methods: Scalar (V/f) and Sensorless Vector – Offers precise and dynamic motor control.
• Overload Capacity: Heavy Duty: 150% for 60 sec; Normal Duty: 110% for 60 sec – Ensures robust performance under varying load conditions.
• Built-in EMC Filter: Category C2 – Minimizes electromagnetic interference for reliable operation.
• Safety Function: Safe Torque Off (STO) – Enhances operational safety by preventing unexpected motor startup.
• Communication: Modbus RTU (RS-485) – Facilitates seamless integration into existing control systems.
• User Interface: Removable keypad with USB support – Simplifies programming, monitoring, and diagnostics.
• Enclosure Type: IP21 wall-mounted – Provides protection against dust and dripping water, suitable for indoor industrial settings.
• Cooling Method: Forced air cooling – Ensures optimal operating temperatures and extends drive lifespan.

Technical Specifications

• Model Number: ACS550-01-023A-4
• Global Commercial Alias: ACS550-01-023A-4
• Product ID: 3AUA0000002417-D
• Input Frequency: 50/60 Hz
• Analog Inputs: 2 – For external sensor and control signals.
• Digital Inputs: 6 – For various control commands and status monitoring.
• Analog Outputs: 2 – For feedback and integration with other systems.
• Relay Outputs: 3 – For alarm signals or control of external devices.
• Operating Temperature: -10°C to +50°C – Ensures reliable performance in diverse industrial environments.
• Dimensions (H x W x D): 415 mm x 203 mm x 200 mm – Compact design for space-efficient installation.
• Weight: Approximately 8.4 kg – Lightweight for easier handling and installation.
• Certifications: CE, UL, cUL – Guarantees compliance with international safety and quality standards.

Applications

The versatility and robust performance of the ABB ACS550-01-023A-4 make it suitable for a wide array of industrial applications requiring precise motor control and energy efficiency. Its adaptability ensures optimal performance across various sectors:

• Pumps: Ideal for flow control, pressure regulation, and energy savings in water and wastewater treatment, HVAC, and industrial processes.
• Fans: Excellent for air handling units, exhaust fans, and cooling towers, providing precise control of airflow and reducing energy consumption.
• Compressors: Enhances efficiency and extends the lifespan of compressors by optimizing their operation based on demand.
• Conveyors: Ensures smooth acceleration and deceleration, reducing mechanical stress and improving material handling efficiency.
• Mixers: Provides precise speed control for mixing processes, improving product consistency and quality.
• HVAC systems: Optimizes comfort and reduces energy costs in heating, ventilation, and air conditioning applications.
• Material Handling: Improves the control and safety of various material handling equipment.
• General Industrial Motor Control: Suitable for a multitude of other applications where reliable and efficient motor speed control is critical.

Why Choose This Model?

Choosing the ABB ACS550-01-023A-4 represents a commitment to superior performance, energy efficiency, and operational reliability. This VFD is meticulously designed to meet the rigorous demands of modern industrial environments, offering several compelling advantages:

• All-in-one functionality with integrated safety: The built-in EMC filter and Safe Torque Off (STO) function streamline installation, reduce the need for external components, and enhance workplace safety, providing a comprehensive solution in a single unit.
• Energy-efficient motor operation: By precisely matching motor speed to process requirements, the ACS550-01-023A-4 significantly reduces energy consumption, leading to substantial cost savings and a lower environmental footprint. Its ability to optimize power usage makes it a key component in sustainable industrial practices.
• Quick setup and commissioning: The intuitive, removable keypad with USB support simplifies configuration, parameter setting, and diagnostics, drastically reducing commissioning time and allowing for faster integration into existing systems. This user-friendly interface minimizes the learning curve and maximizes operational uptime.
• Trusted ABB reliability for industrial environments: As a product from a global leader in power and automation technologies, the ACS550-01-023A-4 benefits from ABB's renowned engineering excellence and stringent quality control. This ensures a durable, long-lasting solution that delivers consistent performance in even the most demanding industrial settings.
• Compact and Versatile Design: The IP21 wall-mounted enclosure allows for flexible installation in various industrial areas, including those with space constraints, without compromising on protection or performance.

Order Now

Elevate your industrial motor control capabilities with the ABB ACS550-01-023A-4 variable frequency drive. Experience enhanced energy efficiency, precise control, and the unwavering reliability that only ABB can deliver. This essential industrial component is available for fast worldwide shipping, ensuring your operations can benefit from its advanced features without delay.
