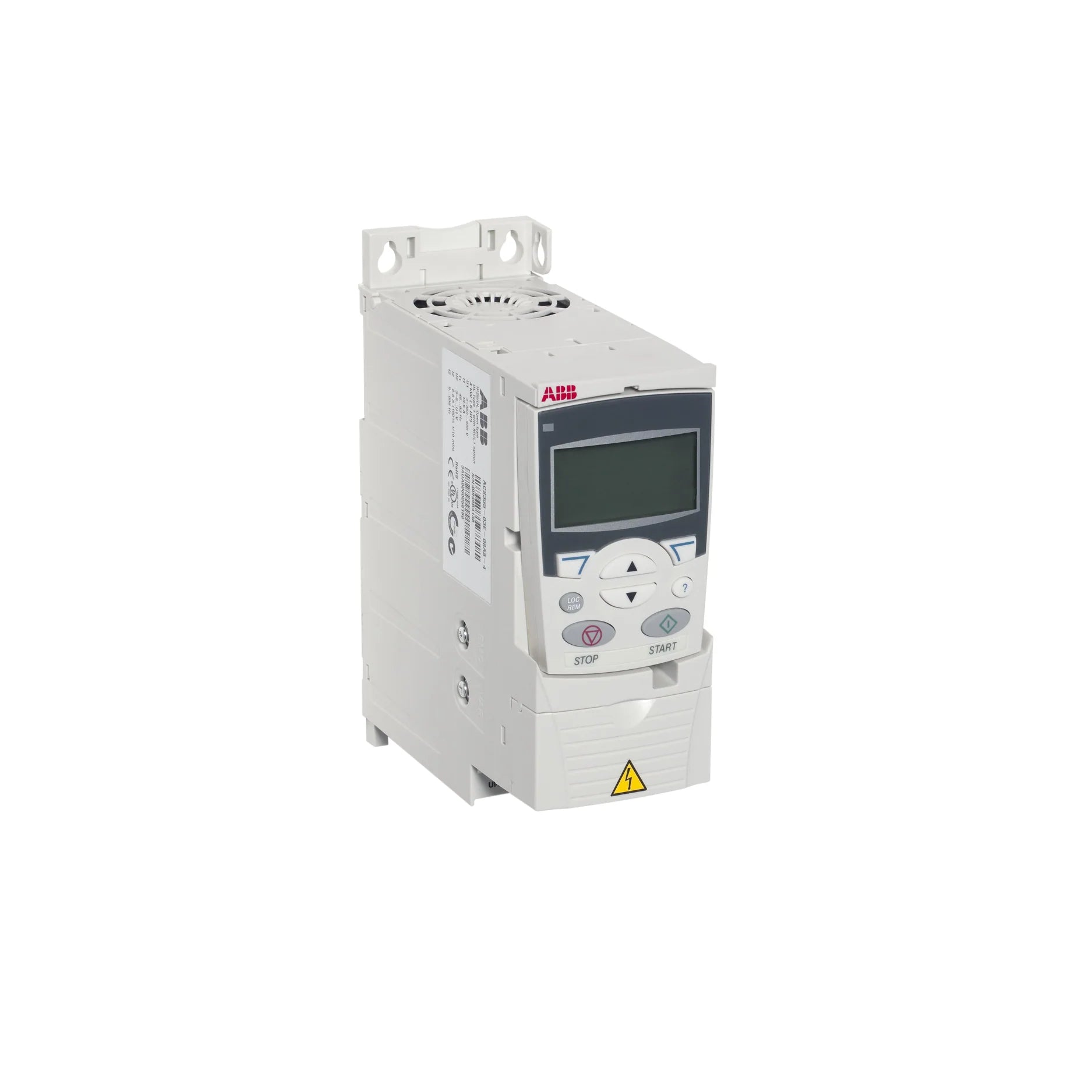

ABB ACS355-03U-04A7-2 | 3AUA0000058203

Overview

Unleash optimal performance and efficiency in your machinery applications with the ABB ACS355-03U-04A7-2 Variable Frequency Drive. Engineered by ABB, a leader in industrial automation, this compact and robust VFD (Variable Frequency Drive) provides a powerful and precise solution for a wide range of motor control needs. Designed for rapid installation and effortless setup, the ACS355-03U-04A7-2 is the ideal choice for machine builders (OEMs) and demanding industrial environments where space-saving design and reliable operation are paramount. Its integrated features ensure smooth motor operation, enhanced productivity, and significant energy savings across various applications.

The ABB ACS355-03U-04A7-2, also identified by its Product ID 3AUA0000058203, is a sophisticated yet easy-to-use drive that redefines control and flexibility for 3-phase systems. With a nominal output current of 4.7 A and compatibility with 200-240 V AC input, this drive is perfectly suited for managing motors up to 1.5 kW (2 HP). Experience superior motor control with both sensorless vector and scalar capabilities, ensuring adaptable and precise operation for your specific machinery.

Key Features

• Optimized Output Current: Delivers a steady 4.7 A, perfectly suited for controlling a variety of motor sizes within its power range.
• Versatile Input Voltage: Compatible with 3-phase, 200–240 V AC systems, offering broad application flexibility.
• Robust Power Range: Efficiently manages motors up to 1.5 kW (2 HP), providing ample power for numerous industrial tasks.
• Advanced Control Types: Features both Sensorless Vector and Scalar Control for precise and adaptable motor regulation, optimizing performance and efficiency.
• Integrated EMC Filter: Reduces electromagnetic interference, ensuring compliance and reliable operation in sensitive environments.
• Durable IP20 Enclosure: Provides essential protection against solid objects, suitable for demanding industrial settings.
• User-Friendly Interface: An integrated keypad allows for easy configuration and monitoring, simplifying setup and ongoing adjustments.
• Compact Design: Space-saving dimensions make it an excellent choice for installations where cabinet space is limited.

Technical Specifications

• Product Model: ABB ACS355-03U-04A7-2
• Product ID: 3AUA0000058203
• Type Designation: ACS355-03U-04A7-2
• Frequency Range: Expansive 0–500 Hz, enabling control over a wide spectrum of motor speeds.
• Overload Capacity: 150% for 60 seconds, ensuring robust performance during sudden load peaks without interruption.
• Comprehensive Protection Functions: Includes overcurrent, short-circuit, ground fault, and overtemperature protection for enhanced safety and operational longevity.
• Wide Ambient Temperature Range: Operates reliably from -10°C to +50°C without derating, suitable for diverse industrial climates.
• Dimensions (H x W x D): Approximately 203 mm x 70 mm x 169 mm, facilitating integration into confined spaces.
• Weight: Approximately 1.4 kg, making it lightweight and easy to handle during installation.
• Global Compliance: Meets CE, UL, cUL, and RoHS standards, assuring quality and adherence to international regulations.

Applications

The ABB ACS355-03U-04A7-2 Variable Frequency Drive is engineered for versatility, making it an indispensable component across a broad spectrum of industrial applications where precise motor control and energy efficiency are critical:

• Conveyor Systems: Provides smooth acceleration and deceleration, reducing wear and tear and improving material flow.
• Mixers and Agitators: Offers accurate speed control for consistent mixing processes, enhancing product quality.
• Fans and Pumps: Optimizes energy consumption by precisely matching motor speed to demand, leading to significant cost savings.
• Packaging Machines: Enables high-speed, synchronized operation for increased throughput and reduced production costs.
• Material Handling Systems: Enhances control and efficiency in lifts, hoists, and other automated handling equipment.
• Textile Machinery: Ensures precise fabric handling and processing with adjustable speed control.
• Wood Processing Equipment: Improves cutting and shaping accuracy with variable speed motor operation.

Why Choose This Model?

The ABB ACS355-03U-04A7-2 stands out as a superior choice for modern industrial applications due to its blend of advanced technology, robust design, and user-centric features:

• Advanced Motor Control: Benefit from both Sensorless Vector and Scalar control capabilities, ensuring exceptional precision and dynamic response across varying load conditions, leading to optimized process quality.
• Space-Saving Design: Its remarkably compact footprint (203 mm x 70 mm x 169 mm) makes it ideal for installations with limited cabinet space, leading to more efficient machine design and layout.
• Easy Programming and Integration: An integrated keypad simplifies initial setup and ongoing adjustments, reducing commissioning time and effort. Its user-friendly interface supports quick parameterization for various applications.
• Durable and Efficient: Built to withstand harsh industrial environments with an IP20 enclosure and a wide operating temperature range (-10°C to +50°C). Its high efficiency design contributes to reduced energy consumption and lower operating costs over the drive's lifespan.
• Reliable Performance: ABB's reputation for quality and innovation means you're investing in a drive known for its consistent performance and long-term reliability, minimizing downtime and maximizing productivity.
• Cost-Effective Solution: Despite its advanced features, the ACS355-03U-04A7-2 offers a cost-effective solution for upgrading or designing new machinery, delivering a strong return on investment through energy savings and enhanced operational efficiency.

Order Now

Elevate your machinery's performance and efficiency today. Incorporate the ABB ACS355-03U-04A7-2 Variable Frequency Drive into your systems to achieve unparalleled motor control, significant energy savings, and streamlined machine integration. Enhance your operational precision and reduce your total cost of ownership. Explore our full range of ABB ACS355 Machinery Drives or delve into the broader offerings in the ABB Industrial Drives main category.
