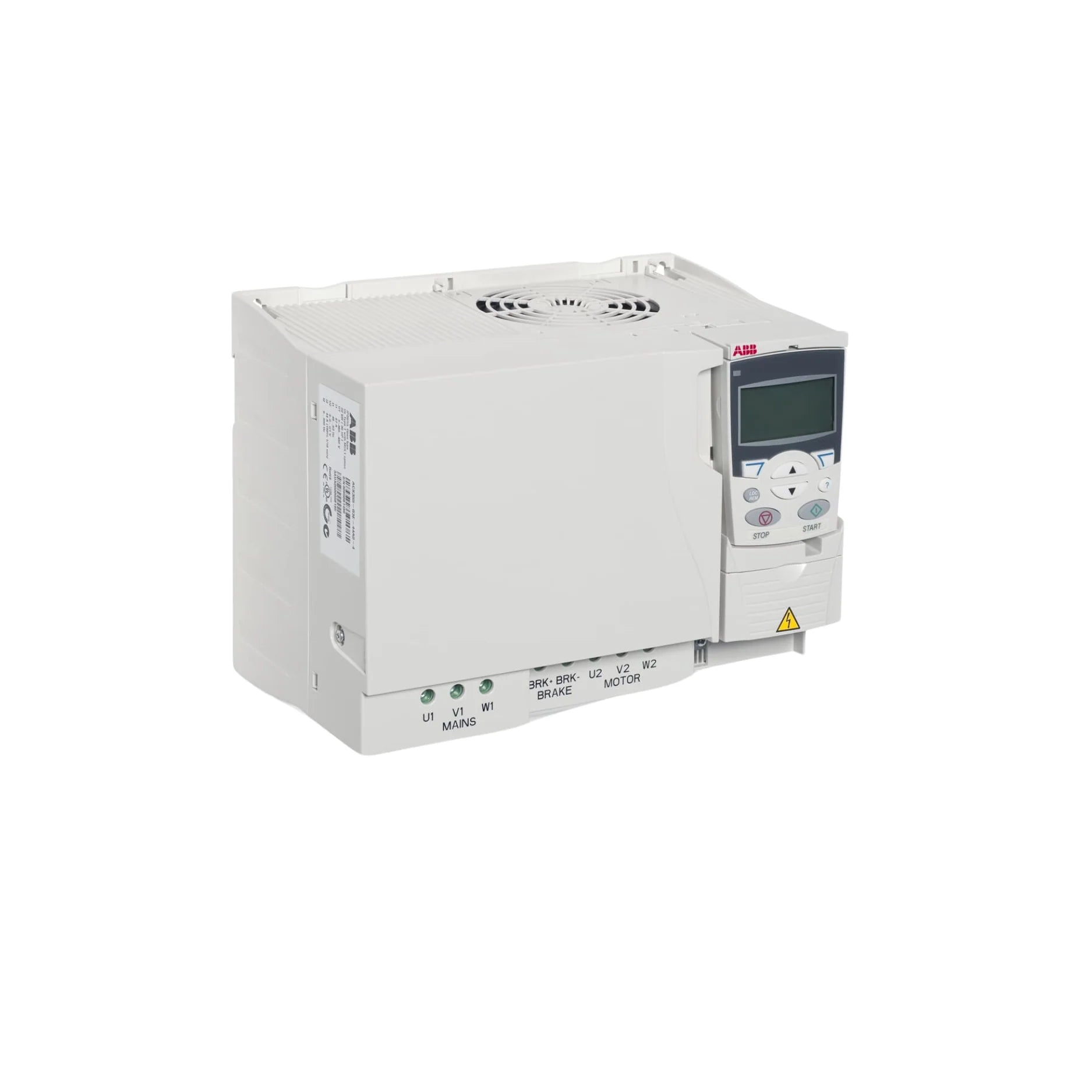

ABB ACS355-03E-44A0-4 | 3ABD0000058255

Overview

The ABB ACS355-03E-44A0-4 is a high-performance, compact variable frequency drive (VFD) engineered for the demanding world of industrial automation. This robust 22 kW (30 HP) drive provides precise and reliable control for 3-phase motors, making it an indispensable component for original equipment manufacturers (OEMs), panel builders, and system integrators. With its IP20 protection rating and a focus on rapid installation and commissioning, the ACS355-03E-44A0-4 is designed to optimize efficiency and performance in a wide array of applications. Its compact design belies its powerful capabilities, offering advanced motor control algorithms like Scalar (V/f) and Sensorless Vector for exceptional operational flexibility.

Key Features

• Motor Power: Configured for 22 kW (30 HP) applications, delivering powerful and efficient motor operation.
• Input Voltage: Highly versatile 3-phase, 380–480V AC input voltage range ensures broad compatibility.
• Output Current: Capable of delivering a robust 44 A output current for demanding loads.
• Frequency Range: Wide operational frequency range from 0 to 599 Hz for diverse application needs.
• Control Modes: Supports both Scalar (V/f) and Sensorless Vector control modes for optimal motor performance and energy efficiency.
• Overload Capacity: Designed to handle challenging conditions with 150% overload capacity for 60 seconds.
• Protection Class: IP20 rated enclosure provides essential protection in industrial environments.
• Mounting Options: Flexible mounting capabilities with support for both DIN rail and wall-mounted installations.
• User Interface: Facilitates easy configuration and monitoring with an optional panel featuring convenient USB support.
• Communication: Integrated Modbus RTU communication, with options for additional fieldbus modules, ensures seamless integration into existing control systems.

Technical Specifications

• Analog Inputs: 2 programmable analog inputs for versatile sensor integration.
• Digital Inputs: 5 configurable digital inputs for comprehensive control signals.
• Analog Outputs: 1 programmable analog output for feedback and control.
• Relay Outputs: 1 relay output for external device control.
• Operating Temperature: Engineered for resilience, operating effectively from -10°C to +50°C.
• Cooling Method: Efficient internal fan cooling maintains optimal operating temperatures.
• Dimensions (H x W x D): Compact physical footprint of 373 mm x 125 mm x 203 mm, ideal for space-constrained installations.
• Weight: Lightweight design at approximately 6.3 kg for easy handling and installation.
• Certifications: Complies with international standards including CE, UL, cUL, and RoHS, ensuring quality and safety.

Applications

The ABB ACS355-03E-44A0-4 is exceptionally versatile, making it suitable for a broad spectrum of industrial applications:

• Food and Beverage Processing: Provides precise control for mixers, conveyors, and pumps, enhancing operational hygiene and efficiency.
• Packaging Machines: Optimizes speed and accuracy in various packaging processes, reducing waste and increasing throughput.
• Textile Machines: Ensures smooth and consistent operation of textile manufacturing equipment.
• Conveyors and Mixers: Delivers robust and reliable motor control for material handling and mixing applications.
• Pumps and Fans: Enhances energy efficiency and extends equipment life in pumping and ventilation systems.
• Light-Duty Material Handling Systems: Offers precise control for various light-duty material handling tasks, improving productivity.

Why Choose This Model?

The ABB ACS355-03E-44A0-4 stands out as a superior choice for your industrial automation needs due to its unique combination of features and benefits:

• Compact Powerhouse: Offers a high output power of 22 kW within a remarkably compact footprint, saving valuable space in your control panels and machinery.
• Rapid Deployment: Engineered for fast installation and commissioning, minimizing downtime and accelerating project timelines with its intuitive design and pre-programmed features.
• Seamless Integration: Boasts wide compatibility with various fieldbus and control systems, ensuring effortless integration into existing automation infrastructures.
• Unwavering Reliability: Backed by ABB's renowned legacy of quality and durability, guaranteeing long-term, dependable performance in even the most demanding industrial environments.
• Optimized Performance: Advanced control modes and robust technical specifications ensure precise motor control, energy efficiency, and extended equipment lifespan.

Order Now

Elevate the performance and efficiency of your industrial applications with the ABB ACS355-03E-44A0-4 compact frequency drive (Product ID: 3ABD0000058255). This essential component for modern automation is available for global delivery, complemented by comprehensive technical support to ensure seamless integration and optimal operation. Invest in ABB's trusted technology to enhance your operational capabilities today.
