ABB ACS355-03E-07A3-4 | 3ABD0000058248

Overview

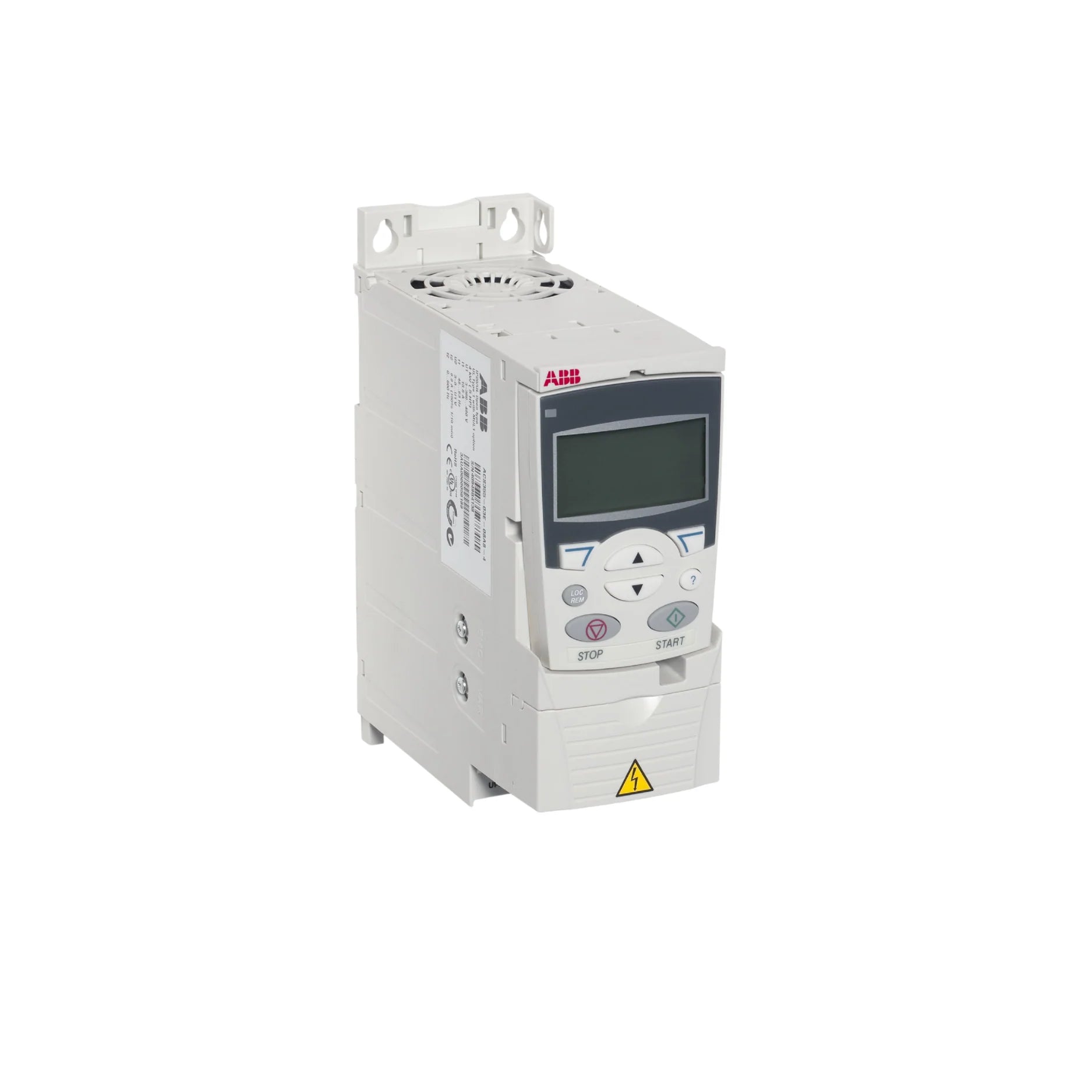

The ABB ACS355-03E-07A3-4, identified by Product ID 3ABD0000058248, is a high-performance compact AC drive engineered for the intricate demands of modern industrial machinery. This 3 kW (4 HP) variable frequency drive (VFD) is a cornerstone for original equipment manufacturers (OEMs) and machine builders seeking reliable, efficient, and precise motor control solutions. Operating with a 3-phase, 400V input, it is designed to seamlessly integrate into a wide array of applications, providing superior control and enhanced operational efficiency. Its robust IP20 enclosure ensures durability in various industrial environments, while its user-friendly interface facilitates quick and straightforward commissioning.

Key Features

• Motor Power: 3 kW (4 HP) for versatile energy management.
• Input Voltage: 3-phase, 380–480 V AC for broad compatibility.
• Output Current: 7.3 A, ensuring stable power delivery.
• Output Frequency: 0 to 500 Hz for flexible motor speed control.
• Control Methods: Advanced Scalar (V/f) and Sensorless Vector control for optimized performance.
• Overload Capacity: Exceptional durability with 150% for 60 seconds (Heavy Duty) and 110% for 60 seconds (Normal Duty).
• Safety Function: Integrated Safe Torque Off (STO) for enhanced operational safety.
• Communication: Standard Modbus RTU, with options for various fieldbus modules to ensure seamless system integration.
• User Interface: Intuitive removable keypad with an assistant function for simplified setup and diagnostics.
• Enclosure Type: IP20 rated, providing protection against solid objects.
• Cooling: Efficient internal fan (forced air) cooling system for maintaining optimal operating temperatures.

Technical Specifications

• Model Number: ACS355-03E-07A3-4, part of the renowned ABB ACS355 series.
• Global Commercial Alias: ACS355-03E-07A3-4.
• Product ID: 3ABD0000058248.
• ABB Type Designation: ACS355-03E-07A3-4.
• Input Frequency: 50/60 Hz, adaptable to global power standards.
• Analog Inputs: 2 for precise sensor integration.
• Digital Inputs: 5 for comprehensive control signals.
• Analog Outputs: 1 for feedback and control.
• Relay Outputs: 1 for auxiliary control functions.
• Operating Temperature: -10°C to +50°C (without derating), suitable for demanding environments.
• Dimensions (H x W x D): Compact design at 260 mm x 100 mm x 160 mm.
• Weight: Approximately 1.9 kg, facilitating easy installation.
• Certifications: CE, UL, cUL, RoHS, ensuring compliance with international standards.

Applications

The ABB ACS355-03E-07A3-4 compact AC drive is versatile and ideal for a broad spectrum of industrial applications where precision, reliability, and efficiency are paramount. Its robust design and advanced control capabilities make it perfectly suited for:

• Packaging Machinery: Enhancing speed and accuracy in packaging lines.
• Material Handling Systems: Optimizing the performance of conveyors and automated storage/retrieval systems.
• Textile Machines: Providing precise control for various textile manufacturing processes.
• Food and Beverage Processing: Ensuring hygienic and efficient operation in critical production environments.
• General Automation: Powering conveyors, mixers, pumps, and fans with unparalleled precision and energy efficiency.

Why Choose This Model?

The ABB ACS355-03E-07A3-4 stands out as a superior choice for industrial motor control due to its exceptional blend of features and engineering excellence. Its compact form factor (260 mm x 100 mm x 160 mm) is specifically designed for space-constrained installations, making it an ideal solution for modern machinery. The drive’s integrated Safe Torque Off (STO) functionality significantly enhances operational safety by preventing unexpected motor startup, thereby protecting personnel and equipment. Furthermore, its flexible connectivity options, including standard Modbus RTU and support for optional fieldbus modules, ensure seamless integration into existing control systems.

Commissioning is streamlined thanks to its user-friendly interface and removable keypad with an assistant display, minimizing setup time and reducing the need for extensive training. This drive is not merely a component; it is a comprehensive solution that optimizes efficiency, reduces downtime, and contributes to the overall longevity of your industrial machinery. With ABB's reputation for quality and innovation, the ACS355-03E-07A3-4 guarantees robust performance and reliable operation in the most demanding industrial environments.

Order Now

Empower your industrial machinery with the precision and reliability of the ABB ACS355-03E-07A3-4 compact AC drive. This essential component for modern automation is available for worldwide delivery, ensuring that your operations can benefit from ABB's leading technology no matter where you are located. Enhance your system's performance and safety by integrating this advanced drive today.

For more innovative solutions, we invite you to explore the complete ABB ACS355 Machinery Drives collection. Additionally, broaden your search for premium industrial control equipment by visiting the ABB Industrial Drives main category.
