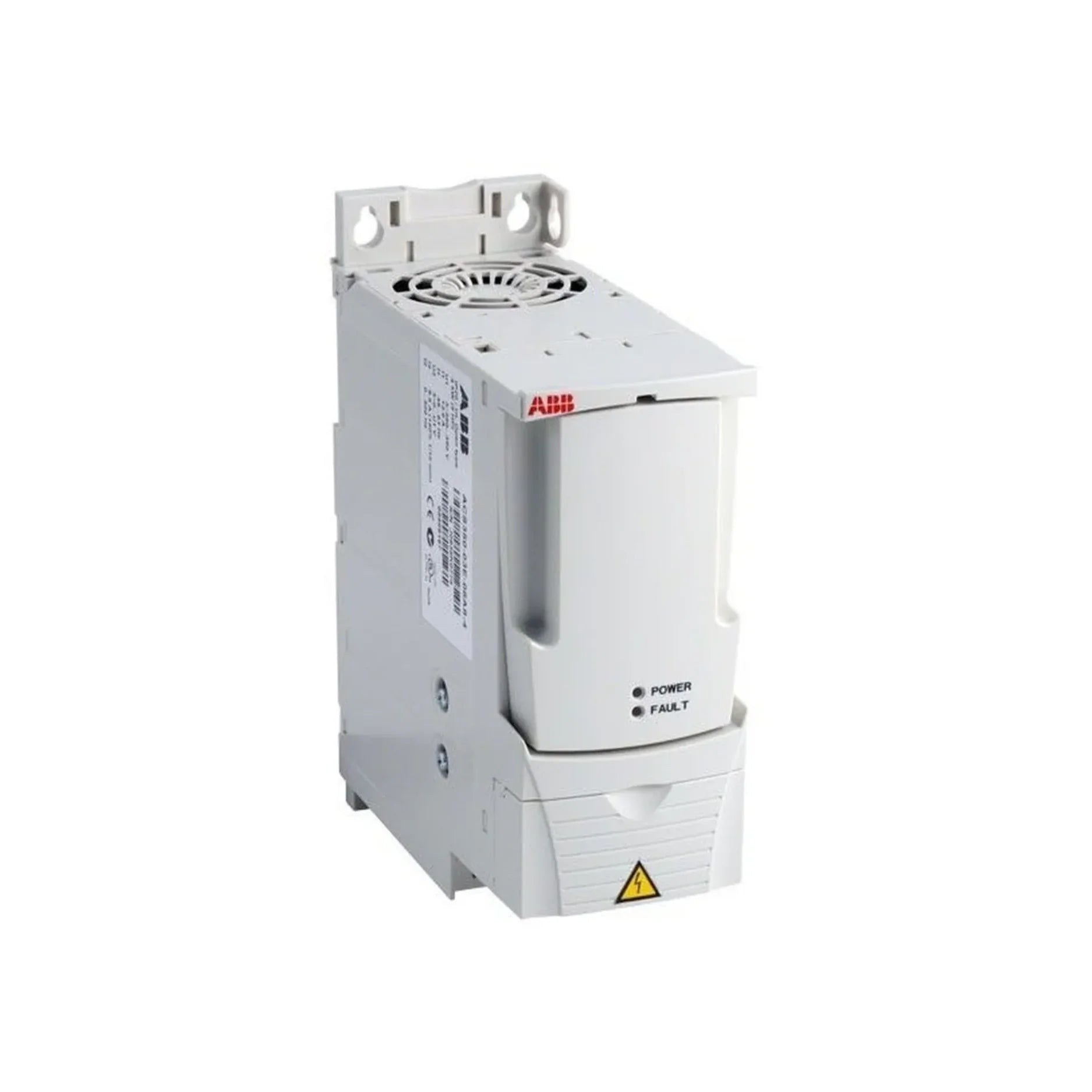

ABB ACS355-03E-04A1-4 | 3AUA0000058186

Overview

The ABB ACS355-03E-04A1-4 is a high-performance, 1.5 kW low-voltage AC variable frequency drive engineered for precision and reliability across a diverse range of industrial machinery applications. Operating seamlessly with a 400V three-phase supply and delivering a robust 4.1 A output, this drive provides exceptional motor control. It offers versatile control for both AC induction and permanent magnet motors, incorporating advanced functionalities for optimized automation and robust safety protocols. Its compact design and integrated intelligent features make it an ideal solution for modern industrial environments where efficiency and precision are paramount.

Key Features

• Power Rating: 1.5 kW (equivalent to 2 HP) ensures efficient operation for various machinery.
• Input Voltage: 400V AC, 3-phase, providing stable power for demanding industrial tasks.
• Output Current: 4.1 A, capable of driving motors with consistent and controlled power.
• Wide Frequency Range: 0 to 500 Hz, offering extensive control over motor speed and torque.
• Motor Compatibility: Supports both AC induction and permanent magnet motors, enhancing application flexibility.
• Integrated Safety: Built-in Safe Torque Off (STO) function ensures machine and operator safety.
• Advanced Control Modes: Features Scalar (V/f), Vector, and Sensorless Vector control for precise motor management.
• Programmable Logic: Built-in sequence programming and logic functions reduce the need for external PLCs.
• Robust Enclosure: IP20 rated for protection against solid objects, suitable for industrial environments.
• Flexible Mounting Options: Designed for easy DIN rail or wall-mount installation.
• User Interface Support: Compatible with ACS-CP-A and ACS-CP-C control panels (available separately) for intuitive operation.

Technical Specifications

• Model Number: ACS355-03E-04A1-4
• Series: ACS355
• Rated Voltage: 380–480 V AC
• Rated Current: 4.1 A
• Frequency: 50/60 Hz
• Control Inputs: 6 digital, 2 analog for comprehensive system integration.
• Outputs: 3 digital, 1 analog, 1 relay for flexible control and feedback.
• Built-in Functions: STO, PID control, timers, counters, and ramp shaping for advanced process management.
• Protection Class: IP20, offering reliable protection in industrial settings.
• Operating Temperature: -10°C to +50°C without derating, ensuring performance in varying conditions.
• Dimensions (H x W x D): Approximately 195 mm x 70 mm x 145 mm, enabling compact installations.
• Weight: Approximately 1.3 kg, facilitating easy handling and mounting.
• Certifications: CE, UL, cUL, RoHS compliant, guaranteeing adherence to international standards.

Applications

The versatility and robust features of the ABB ACS355-03E-04A1-4 make it suitable for a wide array of industrial applications, including but not limited to:

• Food and Beverage Equipment: Ensuring precise control for mixers, conveyors, and processing machinery.
• Material Handling Systems: Optimizing the performance of conveyors, sorters, and automated storage and retrieval systems.
• Lifting and Hoisting Applications: Providing smooth and safe operation for hoists, cranes, and lifting platforms.
• Textile and Printing Machinery: Delivering accurate speed and tension control for intricate processes.
• Rubber and Plastics Processing: Enhancing control over extruders, molding machines, and winding applications.
• Woodworking Equipment: Improving efficiency and precision in saws, routers, and sanding machines.

Why Choose This Model?

The ABB ACS355-03E-04A1-4 stands out as a superior choice for industrial automation due to its compelling combination of features:

• Exceptional Versatility: Compatible with multiple motor types and designed for a broad spectrum of machinery, minimizing inventory and maximizing adaptability.
• Integrated Safety and Control: With built-in Safe Torque Off (STO) and comprehensive control functions, it significantly reduces the need for external components, simplifying system design and lowering costs.
• Compact and Space-Saving: Its small footprint allows for easy installation in constrained panel spaces, making it perfect for OEMs and system integrators.
• Flexible Application: Ideal for standalone applications, integration into larger systems, or panel-mounted solutions, offering unmatched flexibility.
• Global Support: Backed by ABB's worldwide network of support and service, ensuring peace of mind and continuous operation.
• User-Friendly: Despite its advanced capabilities, this drive is designed for ease of use, facilitating quicker setup and commissioning.

Order Now

Enhance your industrial automation with the reliable and efficient ABB ACS355-03E-04A1-4 variable frequency drive. This essential component for modern machinery is available for immediate worldwide shipping, ensuring your projects stay on schedule.
