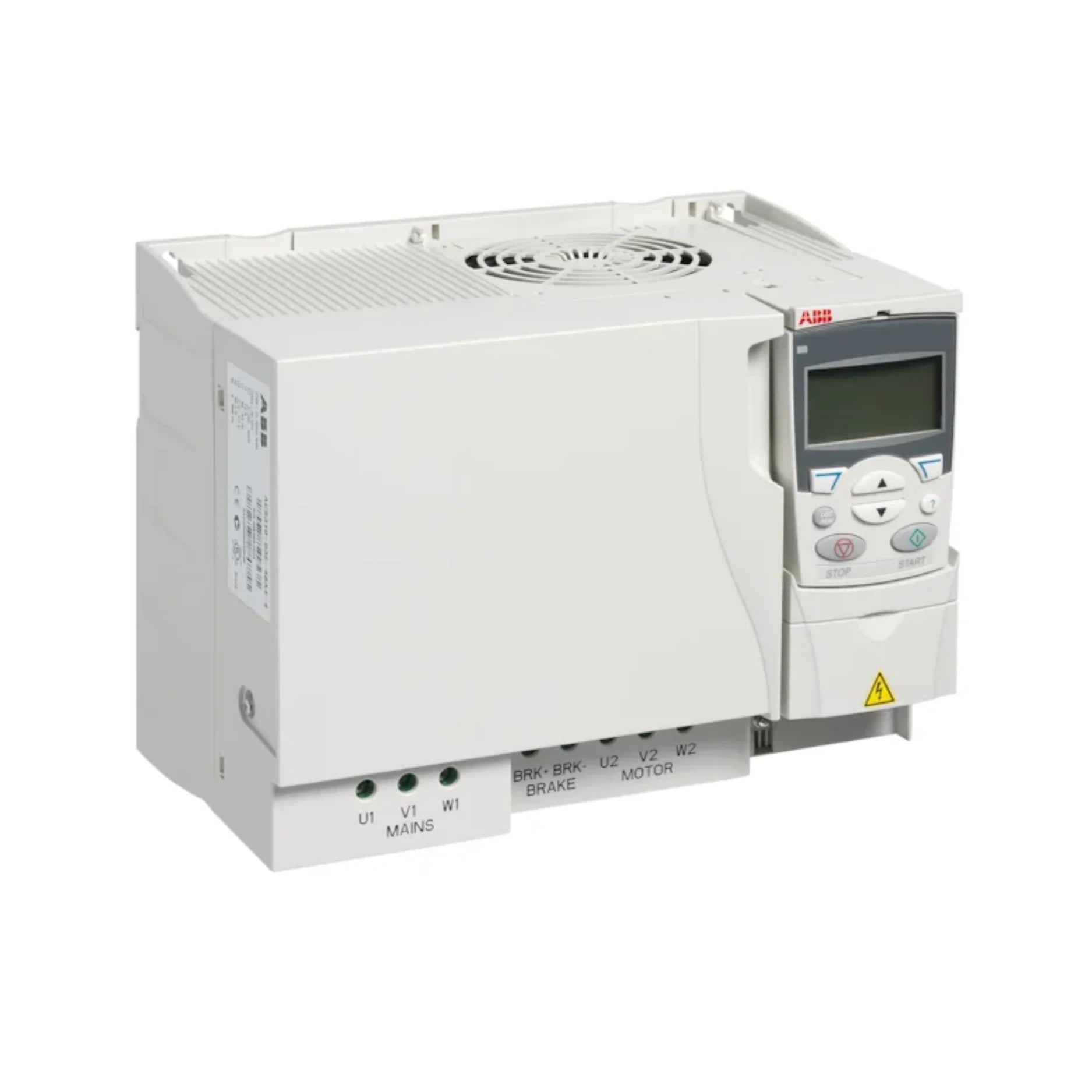

ABB ACS310-03E-41A8-4 | 3AUA0000039637

Overview

The ABB ACS310-03E-41A8-4 is a meticulously engineered variable frequency drive (VFD) designed to deliver unparalleled performance and energy efficiency in pump and fan control applications. As part of ABB's esteemed ACS310 series, this drive stands out with its intelligent functionalities tailored specifically for flow-control environments. It provides precise motor control for 18.5 kW (25 HP) systems, ensuring optimal operation and significant energy savings across various industrial and commercial settings. Its compact design, coupled with robust protection features, makes it an ideal solution for modern HVAC systems, water treatment facilities, and light industrial automation where reliability and efficiency are paramount.

Key Features

• Optimized Motor Control: Specifically designed for pump and fan applications, offering dedicated features like pump cleaning, sleep mode, soft fill, and underload detection for enhanced system longevity and efficiency.
• Powerful Performance: Delivers 18.5 kW (25 HP) of motor power with an output current of 41.8 A, suitable for demanding operations.
• Wide Voltage Compatibility: Operates efficiently across a 3-phase input voltage range of 380–480 V AC, ensuring broad applicability.
• Energy Efficiency: Incorporates advanced algorithms and dedicated functions to minimize energy consumption and reduce operational costs.
• Comprehensive Protection: Features include overcurrent, short-circuit, thermal, and undervoltage protection, safeguarding both the drive and connected equipment.
• Integrated EMC Filter: Equipped with a Class C2 integrated EMC filter, ensuring electromagnetic compatibility and reducing interference.
• Compact and Robust Design: boasts an IP20 enclosure rating and a compact footprint (261 mm x 146 mm x 169 mm), allowing for flexible installation in various environments, including wall or DIN rail mounting.
• User-Friendly Interface: Supports an optional control panel for intuitive configuration and monitoring.

Technical Specifications

• Product ID: 3AUA0000039637
• ABB Type Designation: ACS310-03E-41A8-4
• Motor Power: 18.5 kW (25 HP)
• Input Voltage: 380–480 V AC, 3-phase
• Output Current: 41.8 A
• Control Type: Scalar (V/f) control
• Frequency Range: 0–500 Hz
• Digital Inputs: 5
• Analog Inputs: 2
• Analog Outputs: 1
• Relay Outputs: 1
• Enclosure Rating: IP20
• Operating Temperature: -10°C to +50°C
• Dimensions (H x W x D): 261 mm x 146 mm x 169 mm
• Weight: 3.4 kg
• Certifications: CE, UL, cUL, RoHS

Applications

The versatility and specialized features of the ABB ACS310-03E-41A8-4 make it an excellent choice for a diverse range of applications requiring precise and efficient control of pumps and fans. Its robust design ensures reliable operation in demanding environments, making it a cornerstone for:

• HVAC Systems: Optimizing the performance of fans and blowers for air circulation, ventilation, and climate control in commercial and industrial buildings.
• Water Supply and Booster Systems: Providing consistent pressure and flow for municipal waterworks, agricultural irrigation, and industrial water processing.
• Process Cooling and Circulation Pumps: Enhancing the efficiency of cooling towers, chillers, and circulation systems in manufacturing and processing plants.
• Light Industrial Automation: Offering reliable motor control for various pump and fan applications within small to medium-scale industrial operations, improving overall process stability and reducing energy costs.

Why Choose This Model?

The ABB ACS310-03E-41A8-4 stands as a testament to ABB's commitment to innovation, reliability, and sustainability. Choosing this particular model means investing in a solution that is engineered to exceed expectations in pump and fan control. Its intelligent features are not merely additions but fundamental design elements that contribute to tangible operational benefits, including significant energy savings, prolonged equipment lifespan, and reduced maintenance. The compact form factor ensures easy integration into existing systems, while global certifications underscore its compliance with international standards for safety and performance. With ABB's renowned global support and service network, you gain peace of mind knowing that your investment is backed by industry-leading expertise.

Order Now

Elevate your operational efficiency and achieve substantial energy savings with the ABB ACS310-03E-41A8-4 VFD. This high-performance drive, identified by Product ID 3AUA0000039637, is an indispensable asset for modern pump and fan applications. It is currently in stock and available for global delivery. Secure this optimal solution for your HVAC and industrial automation needs today and benefit from ABB's unparalleled quality and innovation. For further exploration of compatible solutions, you may wish to return to our full range of ABB ACS310 Variable Frequency Drives or browse our comprehensive selection of ABB Industrial Drives.
