ABB ACS310-03E-34A1-4 | 3AUA0000039636

Overview

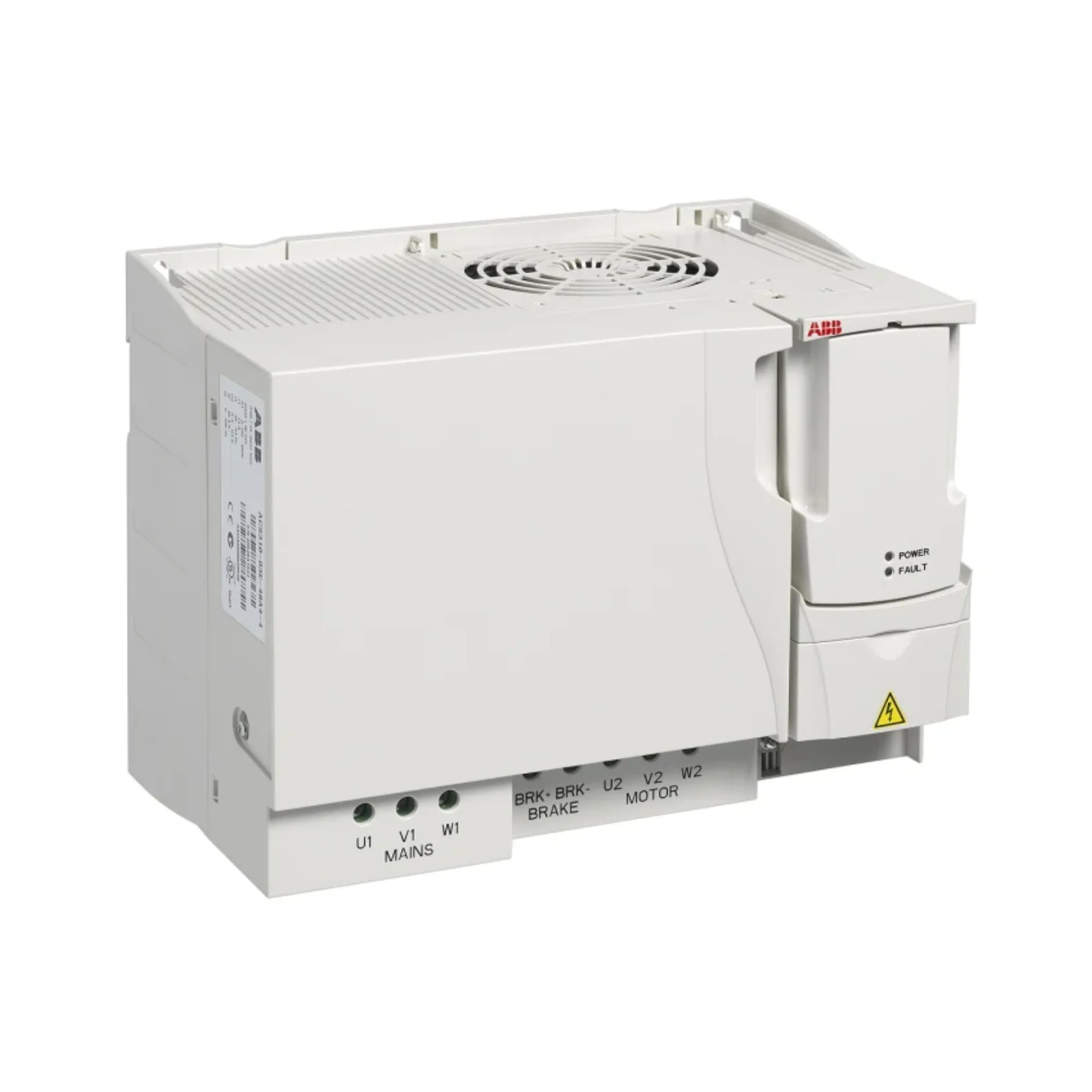

The ABB ACS310-03E-34A1-4 is a state-of-the-art Variable Frequency Drive (VFD) meticulously engineered for optimal performance in Heating, Ventilation, and Air Conditioning (HVAC) systems. Specifically designed for pump and fan applications, this compact and robust VFD, identified by Product ID 3AUA0000039636 and ABB Type Designation ACS310-03E-34A1-4, offers unparalleled control and energy efficiency. Its integrated intelligent features enable precise motor management, leading to significant energy savings and extended equipment lifespan. Ideal for a wide range of light industrial processes as well, the ACS310-03E-34A1-4 stands as a testament to ABB's commitment to innovation and reliability in motor control solutions. With a power rating of 15 kW and a current output of 34.1 A at 400 V, this IP20-rated drive provides a seamless and efficient operational experience.

Key Features

• Motor Power: 15 kW (equivalent to 20 horsepower), providing ample power for demanding applications.
• Input Voltage: Versatile 3-phase input, ranging from 380–480 V AC, ensuring compatibility with various power grids.
• Output Current: Delivers a robust 34.1 A, capable of driving a wide array of motors.
• Control Type: Utilizes Scalar (V/f) control for reliable and straightforward motor regulation.
• Pump/Fan Optimized Functions: Features include Soft Fill for smooth system startup, Pump Cleaning to prevent blockages, Sleep Mode for energy conservation during low demand, and integrated PID control for precise process regulation.
• Overload Capacity: Designed to withstand 110% overload for up to 60 seconds, ensuring resilience during peak loads.
• Integrated EMC Filter: Class C2 EMC filter compliant, minimizing electromagnetic interference and ensuring system harmony.
• Enclosure Rating: IP20 protection, suitable for controlled indoor environments.
• Mounting Options: Flexible installation with options for both wall mounting and DIN rail integration.
• User Interface: Supports an optional control panel for intuitive monitoring and adjustment.

Technical Specifications

• Frequency Range: Wide operational frequency from 0–500 Hz, offering extensive motor speed control.
• Digital Inputs: Equipped with 5 digital inputs for versatile control signal integration.
• Analog Inputs: 2 analog inputs allowing for precise sensor feedback and control.
• Analog Outputs: 1 analog output for transmitting operational data or control signals.
• Relay Outputs: Includes 1 relay output for status signaling or external device control.
• Protection Features: Comprehensive protection against overvoltage, overload, and short-circuit conditions, safeguarding both the drive and the connected equipment.
• Operating Temperature: Designed to operate reliably in temperatures ranging from -10°C to +50°C.
• Dimensions (H x W x D): Compact physical footprint of 261 mm x 146 mm x 169 mm for space-constrained installations.
• Weight: Lightweight at 3.4 kg, facilitating easy handling and installation.
• Certifications: Complies with international standards including CE, UL, cUL, and RoHS, ensuring global market acceptance and safety.

Applications

The ABB ACS310-03E-34A1-4 VFD is an ideal solution for optimizing a diverse range of applications, including:

• Heating, Ventilation, and Air Conditioning (HVAC) Systems: Enhances efficiency and control for air handling units, chillers, and other HVAC components.
• Water Circulation and Booster Pumps: Provides precise control for maintaining constant pressure and flow in water systems, reducing wear and energy consumption.
• Industrial Fans and Blowers: Optimizes air movement in industrial settings, improving process efficiency and air quality.
• Process Cooling Systems: Ensures stable and efficient operation of cooling pumps and fans in various industrial processes.

Why Choose This Model?

• Unmatched Energy Efficiency: Specifically engineered to minimize power consumption in pump and fan applications, leading to substantial operational cost savings.
• Dedicated HVAC Functionality: Pre-programmed features like soft fill, pipe cleaning, and sleep mode significantly simplify commissioning and enhance system reliability.
• Compact & Versatile Design: Its small footprint and multiple mounting options allow for flexible installation even in confined spaces, making it a highly adaptable solution.
• Proven ABB Reliability: Built with ABB's renowned engineering excellence, guaranteeing long-term durability, consistent performance, and minimal maintenance requirements.
• Global Support Network: Benefit from ABB's extensive global support and service network, ensuring peace of mind and prompt assistance whenever needed.
• Ease of Integration: With comprehensive I/O options and an intuitive interface, integrating this VFD into existing systems is straightforward.

Order Now

Elevate your HVAC and industrial pump/fan systems with the superior control and efficiency of the ABB ACS310-03E-34A1-4 Variable Frequency Drive. Available for immediate global delivery, take the next step towards optimized performance and energy savings. For further information or to explore our complete range of solutions, return to our ABB ACS310 Variable Frequency Drives section or browse our main category of ABB Industrial Drives.
