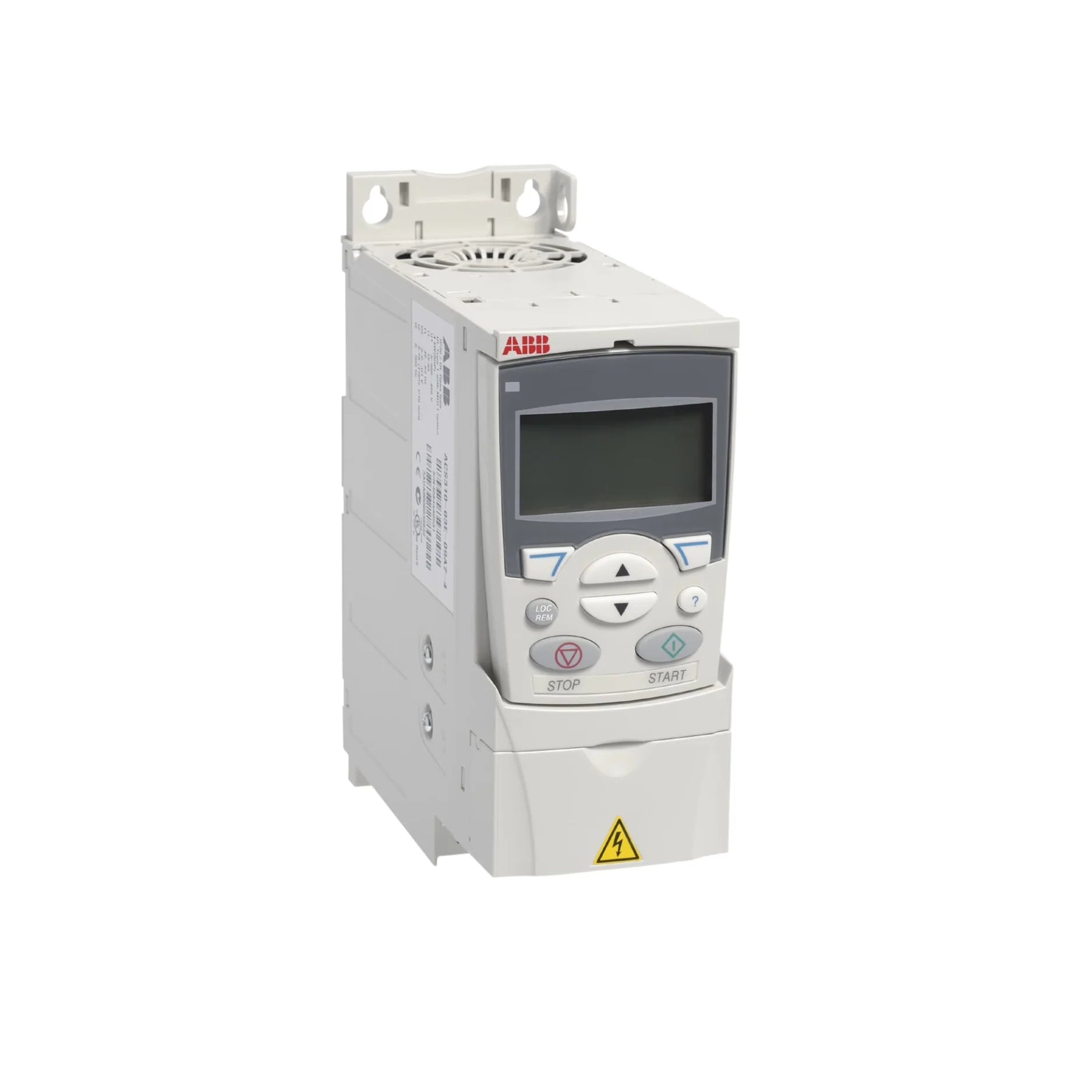

ABB ACS310-03E-09A7-4 | 3AUA0000039632

Overview

The ABB ACS310-03E-09A7-4 is a state-of-the-art variable frequency drive (VFD) meticulously engineered to elevate the performance and energy efficiency of fan and pump applications across a spectrum of light industrial and building management environments. Identifiable by its Product ID 3AUA0000039632, this compact and intelligent VFD from ABB’s renowned industrial drives portfolio delivers precise motor control, ensuring optimal operation and significant energy savings. Its robust design and integrated features make it an ideal solution for applications demanding reliability and cost-effectiveness in fluid and air handling systems.

Key Features

• Motor Power: 4 kW (equivalent to 5.5 HP), providing ample power for a wide range of fan and pump duties.
• Input Voltage: Configured for 380–480 V AC, 3-phase, ensuring compatibility with standard industrial power supplies.
• Output Current: Delivers a steady 9.7 A, enabling efficient motor operation.
• Control Method: Utilizes Scalar control (V/f) for straightforward and effective motor speed regulation.
• Optimized Pump & Fan Functions: Incorporates advanced features such as sleep/wake modes to conserve energy during low demand, pump cleaning functionalities for maintenance, and PID control for precise process management.
• Overload Capacity: Boasts an impressive 110% overload capacity for 60 seconds, offering resilience during peak load conditions.
• Integrated EMC Filter: Equipped with a C2 class EMC filter, minimizing electromagnetic interference and ensuring compliance with stringent regulations.
• Enclosure: Features an IP20 enclosure, suitable for installation in protected environments.
• Mounting Options: Versatile mounting flexibility with options for both wall and DIN rail installation.
• Control Panel: Supports an optional add-on control panel for enhanced user interface and local control.

Technical Specifications

• Output Frequency Range: A broad range from 0–500 Hz, allowing for fine-tuned speed control of various motors.
• Analog Inputs: 2 dedicated analog inputs for seamless integration with sensors and external control signals.
• Digital Inputs: 5 digital inputs provide extensive connectivity for various control and status signals.
• Analog Outputs: 1 analog output for feedback and integration with supervisory control systems.
• Relay Outputs: 1 relay output for activating external devices or signaling operational status.
• Protection Features: Comprehensive protection mechanisms including short-circuit, overload, and overvoltage safeguards, ensuring operational longevity and safety.
• Operating Temperature: Designed to operate reliably in temperatures ranging from -10°C to +50°C.
• Dimensions (H x W x D): Compact physical dimensions of 169 mm x 100 mm x 143 mm, facilitating installation in space-constrained applications.
• Weight: A lightweight design at just 1.5 kg, simplifying handling and installation.
• Certifications: Complies with international standards and holds certifications such as CE, UL, cUL, and RoHS, attesting to its quality and safety.

Applications

• Building Ventilation Systems: Optimizes air circulation and HVAC efficiency in commercial and residential buildings.
• Agricultural Irrigation: Provides precise control for pumps in farming and irrigation setups, conserving water and energy.
• Booster Pump Stations: Ensures consistent water pressure in water supply networks.
• Process Cooling and Heating Systems: Regulates fluid flow in industrial processes, enhancing temperature control and energy management.
• Water Distribution Automation: Contributes to smart water management solutions by automating pump operations.

Why Choose This Model?

Opting for the ABB ACS310-03E-09A7-4 VFD means investing in unparalleled efficiency and reliability for your fan and pump applications. This model stands out due to its specific optimization for HVAC and pump operations, ensuring that your systems run at their peak performance while significantly reducing energy consumption. Its smart control features not only lead to substantial energy savings but also extend the lifespan of your motors and associated equipment by reducing mechanical stress. The ACS310-03E-09A7-4 is renowned for its robust and compact design, facilitating easy installation and commissioning, even in demanding industrial environments. Furthermore, purchasing this ABB VFD ensures you benefit from ABB’s global reputation for quality, innovation, and comprehensive customer support, providing peace of mind and ensuring long-term operational success.

Order Now

Enhance the efficiency and control of your fan and pump systems today with the ABB ACS310-03E-09A7-4 Variable Frequency Drive. This essential component for modern industrial and commercial applications is readily available with international shipping options to meet your global needs. Take the first step towards optimized energy consumption and reliable performance by securing your unit. For further exploration of ABB’s extensive range of high-performance variable frequency drives, please return to our main category of ABB Industrial Drives.
