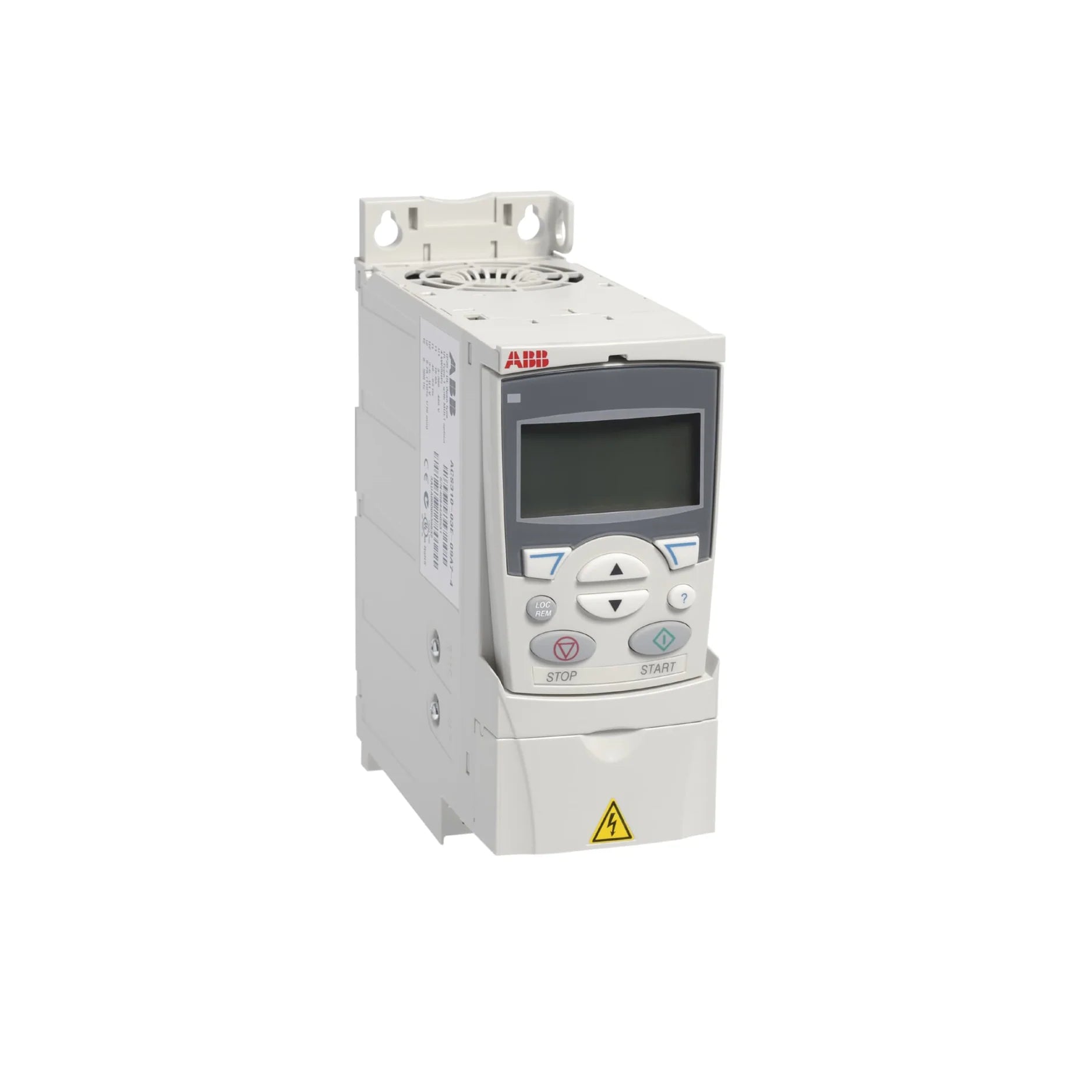

ABB ACS310-03E-06A2-4 | 3AUA0000039630

Overview

The ABB ACS310-03E-06A2-4 is a high-performance Variable Frequency Drive (VFD) meticulously engineered to deliver superior control and energy efficiency for a wide range of pump and fan applications. This robust 2.2 kW (3 HP) drive is designed to optimize motor operation, providing precise speed control and reducing energy consumption in HVAC systems, water management, and light industrial settings. Its compact design, coupled with advanced features, makes it an ideal solution for modern automation requirements where reliability and cost-effectiveness are paramount.

With a focus on user-friendly operation and seamless integration, the ACS310-03E-06A2-4 enhances the lifespan of your equipment while ensuring consistent and stable performance. This ABB VFD is built to withstand demanding environments, offering intelligent functionalities such as pump cleaning and PID control, which further contribute to its operational excellence.

Key Features

• Motor Power: 2.2 kW (3 HP) for efficient operation.
• Input Voltage: 380–480 V AC, 3-phase, ensuring broad compatibility.
• Output Current: 6.2 A, providing reliable power delivery.
• Control Method: Scalar (V/f) control for stable motor performance.
• Dedicated Functions: Includes pump cleaning, PID control, and intelligent sleep and wake functions to optimize performance and reduce wear.
• Overload Capacity: 110% for 60 seconds, offering protection against momentary overloads.
• Integrated EMC Filter: C2 category, reducing electromagnetic interference.
• Enclosure Rating: IP20, suitable for indoor installations.
• Mounting Options: Versatile wall and DIN rail mounting for flexible installation.
• Control Panel: Optional for enhanced user interaction and configuration.

Technical Specifications

• Product ID: 3AUA0000039630
• ABB Type Designation: ACS310-03E-06A2-4
• Output Frequency: 0–500 Hz, allowing for precise speed adjustments.
• Analog Inputs: 2, for connecting various sensors and control signals.
• Digital Inputs: 5, for remote control and status monitoring.
• Analog Outputs: 1, for feedback and integration with other systems.
• Relay Outputs: 1, for signaling and control purposes.
• Protections: Comprehensive overvoltage, short-circuit, and motor overload protection to ensure system reliability and longevity.
• Operating Temperature: -10°C to +50°C, suitable for a wide range of industrial environments.
• Dimensions (H x W x D): 169 mm x 70 mm x 143 mm, indicating a compact and space-saving design.
• Weight: 1.3 kg, facilitating easy handling and installation.
• Certifications: CE, UL, cUL, RoHS compliant, ensuring adherence to international quality and safety standards.

Applications

The ABB ACS310-03E-06A2-4 VFD is specifically engineered for optimal performance in a variety of light industrial and commercial applications that rely on precise pump and fan control. Its intelligent features and robust design make it an excellent choice for:

• Irrigation Systems: Providing efficient water management and energy savings.
• Booster Pumps: Ensuring consistent water pressure and flow in various settings.
• HVAC Ventilation: Optimizing air circulation and energy consumption in heating, ventilation, and air conditioning systems.
• Water Circulation Systems: Maintaining efficient fluid movement in industrial and commercial installations.
• Small Industrial Automation Setups: Offering reliable motor control for various light-duty machinery.

Why Choose This Model?

The ABB ACS310-03E-06A2-4 stands out as a superior choice for your pump and fan control needs due to its specialized design and advanced functionalities. This model is not just a variable frequency drive; it's a solution engineered to deliver tangible benefits:

• Tailored for Efficient Pump and Fan Control: Its dedicated features are specifically optimized for the precise demands of these applications, leading to enhanced performance and reduced wear and tear on your equipment.
• Built-in Features Reduce Energy Consumption: Intelligent functions like PID control and sleep/wake modes actively work to minimize energy waste, translating into significant operational cost savings over time.
• Space-Saving, Compact Design: The small footprint of the drive allows for versatile installation in constrained spaces, making it ideal for integration into existing systems without extensive modifications.
• Easy to Configure and Maintain: Designed for user-friendliness, the ACS310-03E-06A2-4 simplifies initial setup and ongoing maintenance, reducing downtime and operational complexities.
• ABB Reliability: As a product from ABB, a globally recognized leader in industrial technology, this VFD guarantees exceptional quality, durability, and long-term support.

Order Now

Elevate the efficiency and reliability of your pump and fan applications with the ABB ACS310-03E-06A2-4 Variable Frequency Drive. This high-quality VFD is engineered to provide precise control, significant energy savings, and a long operational life.

Ready for fast, global shipping, you can enhance your systems without delay. For more information or to explore other advanced solutions, please refer to our ABB ACS310 Variable Frequency Drives category or Browse the main category ABB Industrial Drives.
