ABB ACS150-03U-09A8-2

Overview

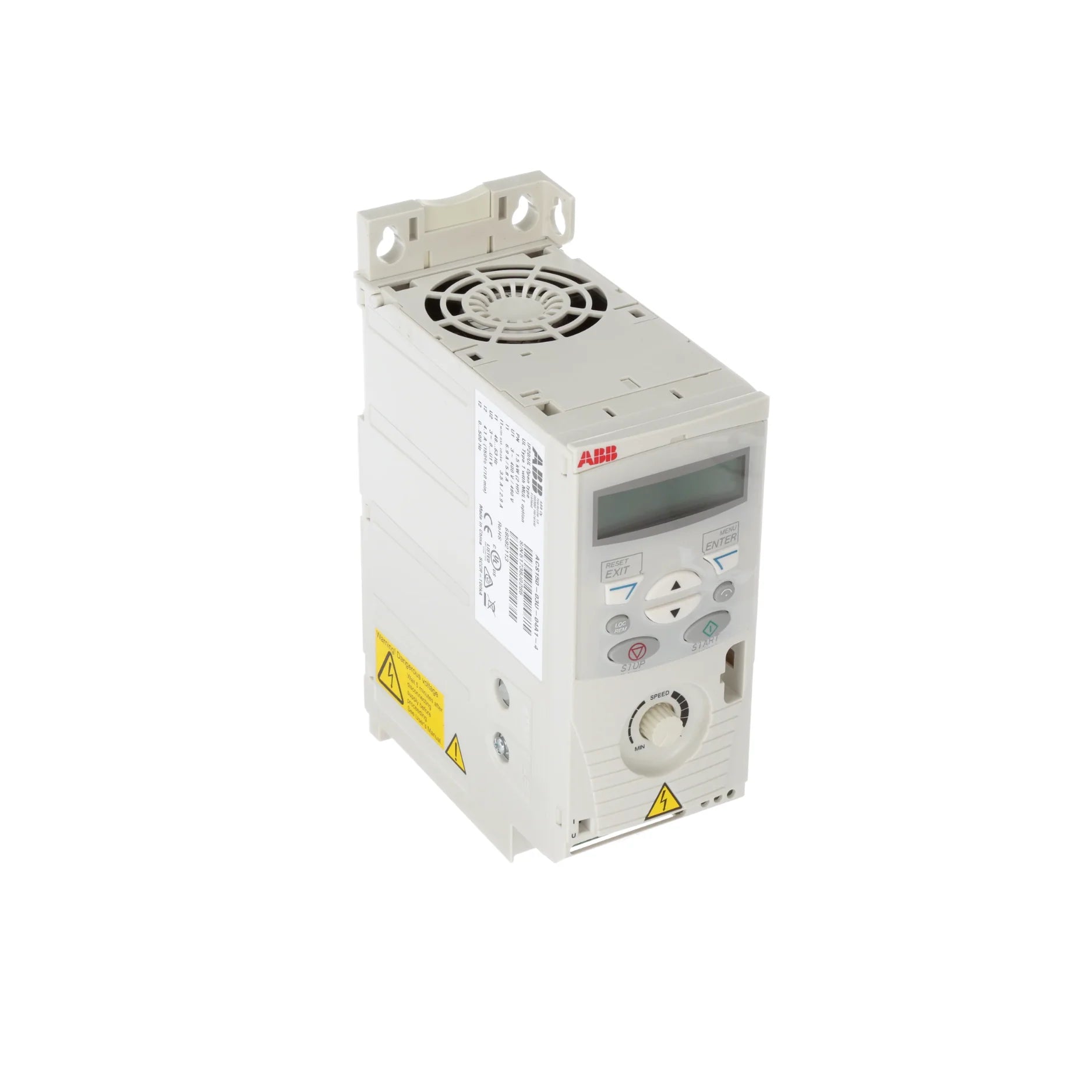

The ABB ACS150-03U-09A8-2 is a high-performance variable frequency drive (VFD) meticulously engineered to deliver precise and reliable speed control for 3-phase AC induction motors. This compact yet powerful 2 HP, 230 V VFD is an ideal solution for a multitude of light industrial and OEM applications where space efficiency and consistent performance are paramount. Integrating advanced features such as a built-in keypad for intuitive operation, a robust EMC filter to ensure electromagnetic compatibility, and an IP20 enclosure for environmental protection, the ACS150-03U-09A8-2 stands out as a cost-effective and dependable choice for optimizing motor control and enhancing operational efficiency.

Designed with user convenience in mind, this ABB VFD boasts a straightforward setup process and user-friendly interface, making it accessible for both seasoned engineers and technicians. Its ability to seamlessly integrate into various systems, coupled with ABB's renowned engineering excellence, ensures long-term reliability and superior control over your motor-driven equipment. Whether you're looking to reduce energy consumption, achieve finer process control, or extend the lifespan of your machinery, the ACS150-03U-09A8-2 offers a compelling balance of functionality, durability, and value.

Key Features

• Power Rating: 2 HP (1.5 kW) for efficient operation across a range of applications.
• Input Voltage: Versatile 200–240 V AC, 3-phase input to suit various power systems.
• Output Current: Delivers a consistent 9.8 A output for stable motor performance.
• Control Type: Utilizes Scalar (V/f) control for reliable speed and torque regulation.
• User Interface: Integrated keypad with a potentiometer provides convenient and precise local control.
• EMC Filter: Built-in EMC filter (EN 61800-3 C2) minimizes electromagnetic interference, ensuring compliance and system stability.
• Braking Chopper: Integrated braking chopper for quick and controlled deceleration of motors, enhancing safety and application response.
• Protection Class: IP20 protection against solid objects larger than 12.5mm, suitable for enclosed environments.
• Mounting Options: Flexible mounting capabilities for wall or DIN rail installation, allowing for versatile system integration.

Technical Specifications

• Frequency Range: Wide frequency output of 0–500 Hz for diverse motor control requirements.
• Digital Inputs: 5 programmable digital inputs for flexible control signal integration.
• Analog Inputs: 1 analog input for precise control via external analog signals.
• Analog Outputs: 1 analog output for feedback or control to other devices.
• Relay Outputs: 1 relay output for status indication or control of external components.
• Overload Capacity: 150% for 60 seconds, providing robust performance during transient loads.
• Ambient Temperature: Operates reliably in temperatures from -10°C to +40°C without derating.
• Dimensions (H x W x D): Compact physical footprint of 142 mm x 70 mm x 172 mm for space-constrained installations.
• Weight: Lightweight at 1.2 kg, facilitating easy handling and installation.
• Certifications: Conforms to international standards including CE, UL, cUL, and RoHS, ensuring global applicability and safety.

Applications

The ABB ACS150-03U-09A8-2 VFD is an exceptionally versatile drive, making it perfectly suited for a broad spectrum of light industrial applications. Its robust design and precise control capabilities ensure optimal performance in:

• Small Pumps and Fans: Ideal for regulating flow and air output in HVAC systems, irrigation, and other fluid handling applications, leading to significant energy savings.
• OEM Machinery: Seamlessly integrates into original equipment manufacturer (OEM) machinery such as packaging machines, textile equipment, and processing units, providing reliable and customized motor control.
• Light-Duty Conveyors: Ensures smooth and controlled movement of goods on conveyor belts, reducing wear and tear and improving operational efficiency in material handling.
• Industrial Automation Panels: A compact and efficient component for integration into industrial control panels, contributing to overall system automation and control.

Why Choose This Model?

Choosing the ABB ACS150-03U-09A8-2 means investing in an unparalleled combination of performance, reliability, and value. This VFD encapsulates ABB's commitment to engineering excellence, offering a solution that not only meets but exceeds the demands of modern industrial environments.

• Compact Powerhouse: Experience premium 2 HP motor control in a remarkably compact design, ideal for installations where space is a critical consideration.
• Integrated Solutions: Benefit from an integrated EMC filter and braking chopper, reducing the need for external components and simplifying installation and wiring.
• Intuitive Operation: The built-in keypad with potentiometer facilitates easy setup, monitoring, and adjustment, minimizing commissioning time and operational complexity.
• Unwavering Reliability: Backed by ABB's global reputation for quality and durability, this VFD is engineered for continuous, trouble-free operation, providing peace of mind.
• Cost-Effective Efficiency: Enhance energy efficiency and extend the lifespan of your motors while enjoying a competitive price point, leading to a strong return on investment.

Order Now

Elevate your motor control capabilities with the ABB ACS150-03U-09A8-2 Variable Frequency Drive. This exceptional product is available for worldwide delivery, supported by comprehensive technical assistance to ensure seamless integration and optimal performance. Reach out to our sales team or place your order today to experience the precision, reliability, and efficiency that only ABB can deliver.
