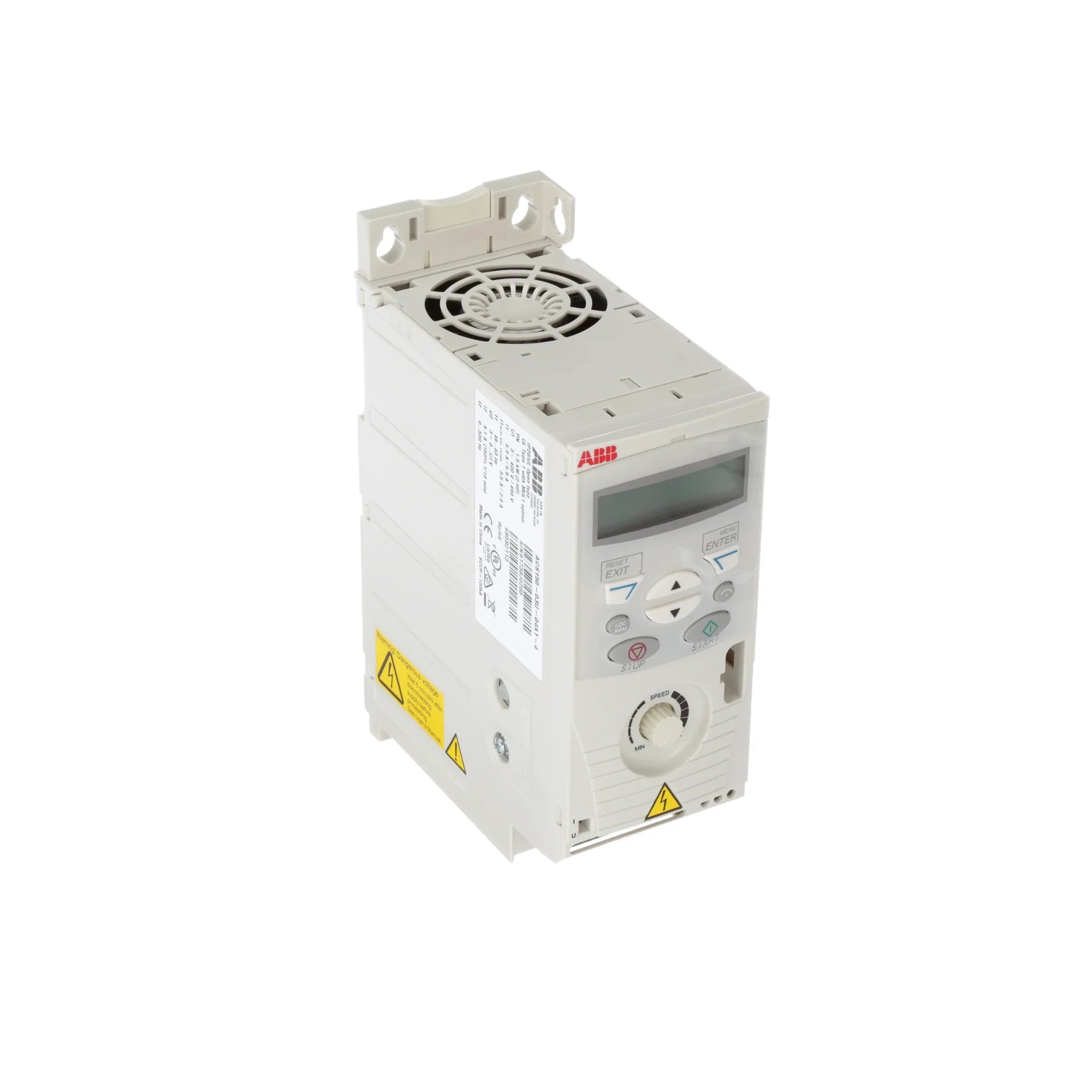

ABB ACS150-03U-08A8-4

Overview

The ABB ACS150-03U-08A8-4 is a robust and highly efficient compact variable frequency drive (VFD) engineered to deliver precise and reliable motor control for a broad spectrum of industrial and OEM applications. Designed with space-saving in mind, this VFD integrates seamlessly into existing systems thanks to its compact IP20 enclosure and flexible mounting options. Featuring an intuitive, built-in keypad, an integrated EMC filter, and a comprehensive suite of protective functions, the ACS150-03U-08A8-4 simplifies installation and operation while ensuring optimal performance and longevity for your motor-driven equipment.

Key Features

• Motor Power: 3 HP (2.2 kW)
• Input Voltage: 200–480 V AC, 3-phase
• Output Current: 8.8 A
• Control Method: Scalar (V/f) for straightforward and effective motor speed regulation.
• User Interface: Integrated keypad with a convenient potentiometer for easy parameter adjustment and monitoring.
• Enclosure Rating: IP20, providing protection against solid objects larger than 12.5mm.
• EMC Filter: Built-in Category C1/C2 EMC filter to minimize electromagnetic interference, ensuring compliance and system stability.
• Mounting Versatility: Supports both DIN rail and wall-mounted installations, offering flexibility for various cabinet designs.
• Braking Chopper: Integrated braking chopper enhances control over motor deceleration, ideal for applications requiring quick stops.

Technical Specifications

• Frequency Range: 0–500 Hz, allowing for impressive speed control.
• Digital Inputs: 5 programmable digital inputs for flexible control logic.
• Analog Inputs: 1 configurable analog input for external command signals.
• Analog Outputs: 1 customizable analog output for feedback or monitoring.
• Relay Outputs: 1 reliable relay output for signaling or external control.
• Overload Capacity: 150% for 60 seconds, providing robust protection against momentary overloads.
• Operating Temperature: -10°C to +40°C (without derating), ensuring reliable operation in diverse environments.
• Dimensions (H x W x D): 182 mm x 100 mm x 169 mm, compact design for easy integration.
• Weight: 1.4 kg, lightweight for simplified handling and installation.
• Certifications: CE, UL, cUL, RoHS compliant, affirming global standards for safety and environmental responsibility.

Applications

The ABB ACS150-03U-08A8-4 is exceptionally versatile, making it an ideal choice for optimizing performance in a wide array of applications:

• Light Industrial Machinery: Enhances the efficiency and control of various industrial equipment.
• Fans and Small Pumps: Provides precise speed control to conserve energy and reduce wear.
• Conveyors and Mixers: Ensures smooth operation and adjustable speeds for optimized material handling.
• OEM Automation Systems: A perfect solution for original equipment manufacturers seeking integrated and reliable motor control.

Why Choose This Model?

The ABB ACS150-03U-08A8-4 stands out as a superior choice for compact motor control, offering a compelling blend of features and benefits:

• Integrated Functionality: Comes with a built-in keypad and EMC filter, significantly reducing setup time and external component requirements.
• Compact Design: Its small footprint makes it an ideal fit for applications with limited space, especially within OEM equipment and smaller control cabinets.
• Ease of Use: Engineered for fast setup and intuitive operation, minimizing the need for extensive training and complex programming.
• Reliable ABB Quality: Backed by ABB's renowned reputation for engineering excellence, ensuring long-term durability and consistent performance.
• Cost-Effective Solution: Delivers high-performance motor control without compromising on affordability or efficiency.

Order Now

Experience the unparalleled control and reliability of the ABB ACS150-03U-08A8-4. This essential component for modern motor control systems is available for immediate international shipping. Secure your compact variable frequency drive today and elevate the operational efficiency of your machinery. Browse our complete selection of ABB ACS150 Variable Frequency Drives or explore the main category of ABB Industrial Drives for more advanced solutions.
