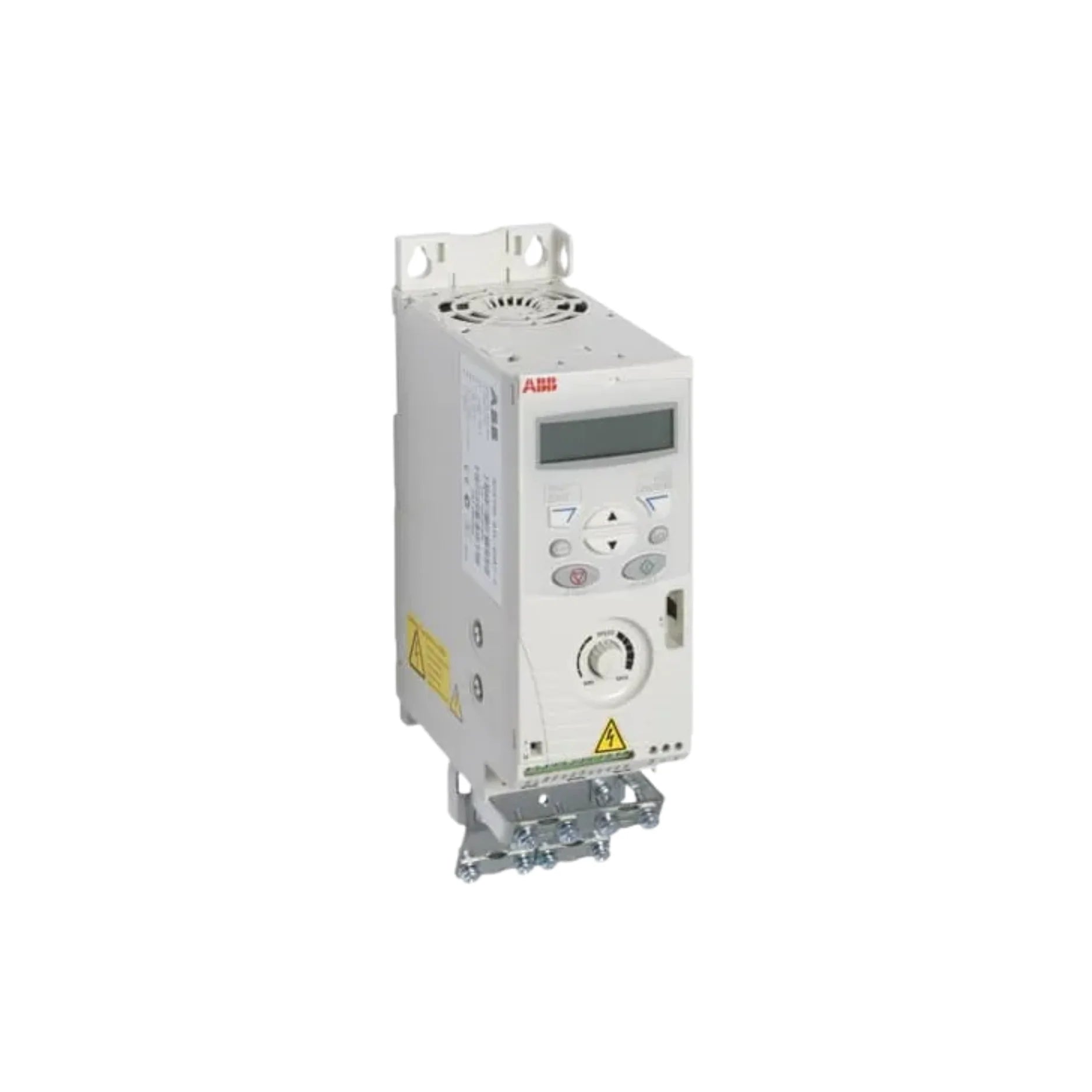

ABB ACS150-03E-08A8-4 | 3ABD68865948

Overview

The ABB ACS150-03E-08A8-4 is a high-performance, compact variable frequency drive (VFD) meticulously engineered to deliver exceptional motor control for a diverse range of OEM and light industrial applications. Boasting a robust 5 HP power rating and designed for 480 V operation, this VFD integrates essential features such as a user-friendly keypad, an effective EMC filter, and a braking chopper directly into its compact IP20 enclosure. This thoughtful integration significantly streamlines both installation and operational processes, making it an ideal choice for environments where space is at a premium and reliable, precise motor management is critical. The ACS150-03E-08A8-4 stands as a testament to ABB's commitment to advanced engineering, offering a dependable solution that enhances efficiency and simplifies machinery control.

Key Features

• Power Rating: 5 HP (3.7 kW) for robust motor performance.
• Input Voltage: Versatile 200–480 V AC, 3-phase compatibility.
• Output Current: Stable 8.8 A output for consistent power delivery.
• Control Type: Efficient Scalar (V/f) control for diverse applications.
• User Interface: Integrated keypad with a potentiometer for intuitive control.
• EMC Filter: Built-in EMC filter minimizes electromagnetic interference.
• Braking Chopper: Integrated braking chopper for controlled deceleration.
• Protection Class: IP20 enclosed design for essential protection.
• Mounting Options: Flexible DIN rail or wall-mount installation.

Technical Specifications

• Frequency Range: Wide 0–500 Hz for various speed control needs.
• Digital Inputs: 5 programmable digital inputs for enhanced control.
• Analog Inputs: 1 analog input for precise signal integration.
• Analog Outputs: 1 analog output for versatile system feedback.
• Relay Outputs: 1 relay output for external control and signaling.
• Overload Capacity: Impressive 150% for 60 seconds, ensuring durability.
• Operating Temperature: Resilient -10°C to +40°C without derating.
• Dimensions (H x W x D): Compact 142 mm x 70 mm x 172 mm.
• Weight: Lightweight 1.2 kg, simplifying handling and installation.
• Certifications: CE, UL, cUL, RoHS compliant for global standards.

Applications

The ABB ACS150-03E-08A8-4 Variable Frequency Drive is engineered for versatility, making it an excellent choice across numerous light industrial and OEM applications. Its precise control and compact form factor are particularly beneficial for:

• Efficient operation of pumps and small fans in various systems.
• Reliable speed control for light-duty conveyors in manufacturing.
• Seamless integration into OEM equipment and machinery for optimized performance.
• Space-saving solutions for compact automation panels where every inch counts.

Why Choose This Model?

Opting for the ABB ACS150-03E-08A8-4 means investing in a solution that embodies efficiency, reliability, and ease of use. This model distinguishes itself with a combination of features that address the core needs of modern motor control applications:

• Integrated Efficiency: A 5 HP compact VFD featuring an integrated EMC filter, reducing the need for external components and simplifying system design.
• Simplified Setup: The onboard keypad provides straightforward setup and parameter adjustments, minimizing installation time and complexity.
• Space Optimization: Its remarkably compact design makes it an ideal choice for installations where space is a critical constraint, without compromising performance.
• Unmatched Reliability: Benefit from the renowned dependable ABB engineering and superior quality, ensuring long-term operational stability and peace of mind.
• Cost-Effective Solution: Designed to offer a high return on investment through energy savings and extended motor life, this drive is a smart economic choice for businesses.

Order Now

Enhance your motor control systems with the ABB ACS150-03E-08A8-4 Variable Frequency Drive. This powerful and compact solution is readily available for global shipping, supported by ABB's comprehensive technical support and customer service. Experience the benefits of precise control, simplified installation, and reliable performance. Contact us today to place your order and take the first step towards optimizing your industrial automation and machinery.
