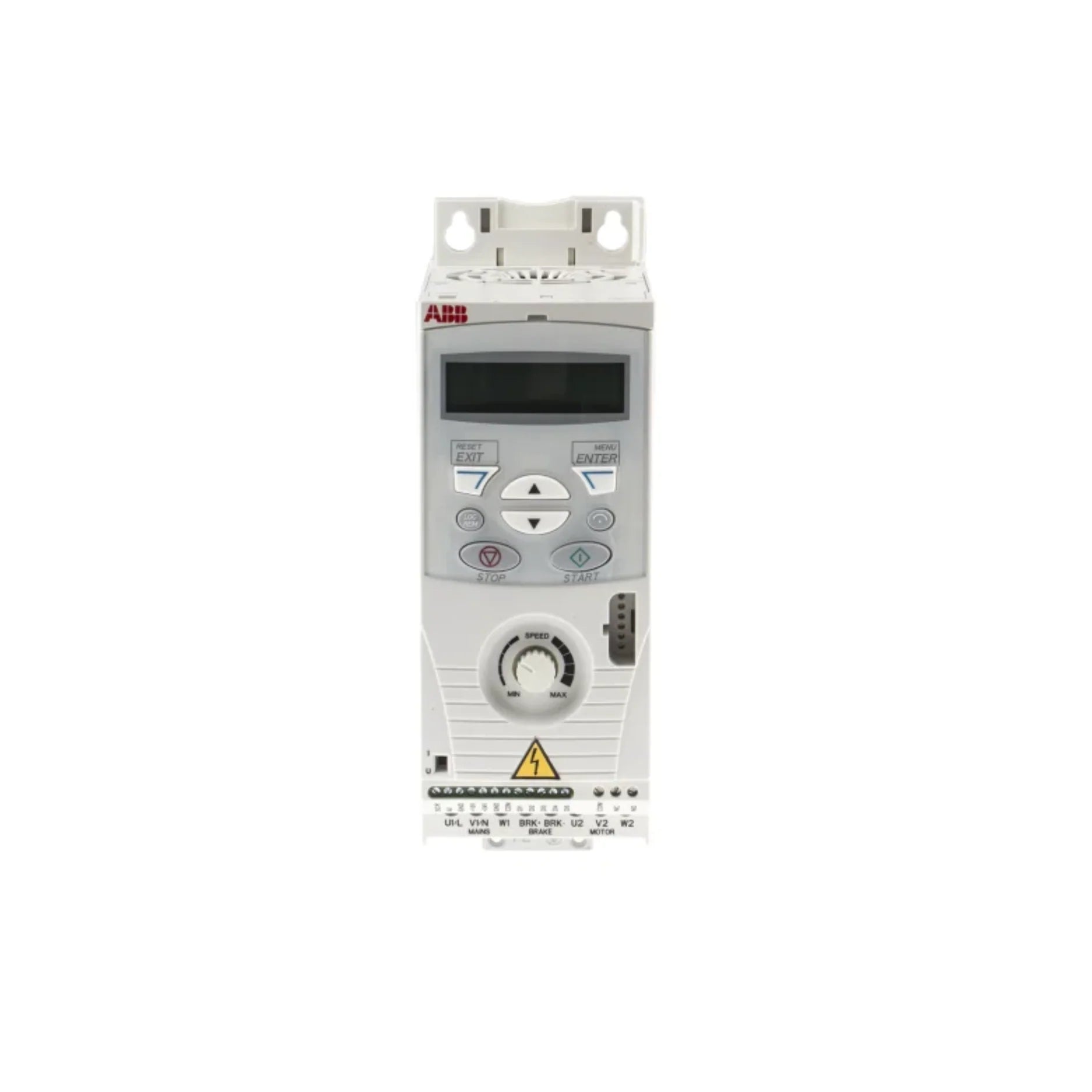

ABB ACS150-03E-07A3-4 | 3ABD68865921

Overview

The ABB ACS150-03E-07A3-4 is a highly efficient and exceptionally compact variable frequency drive (VFD) engineered for optimal performance in diverse light industrial and OEM applications. This robust 4 HP (3 kW), 480 V VFD is designed to streamline motor control, offering a powerful solution in a space-saving IP20 enclosure. With its integrated keypad, built-in EMC filter, and braking chopper, the ACS150-03E-07A3-4 ensures rapid setup, reliable operation, and enhanced motor control capabilities right out of the box. Its user-friendly interface and comprehensive feature set make it an ideal choice for a variety of compact control panel installations where dependable and precise motor management is paramount.

This drive, identified by the product ID 3ABD68865921 and ABB Type Designation ACS150-03E-07A3-4, represents ABB's commitment to delivering high-quality, versatile, and easy-to-integrate motor control solutions. Whether you are looking to optimize conveyor systems, manage pumps and fans, or integrate into specialized OEM equipment, the ACS150-03E-07A3-4 provides the performance and reliability expected from a global leader in industrial automation.

Key Features

• Power Rating: Delivers 4 HP (3 kW) for a wide range of motor applications.
• Input Voltage: Operates efficiently on 200–480 V AC, 3-phase power supplies.
• Output Current: Provides a robust 7.3 A output for consistent motor performance.
• Control Type: Utilizes Scalar (V/f) control for straightforward and effective motor speed regulation.
• Integrated Interface: Features an onboard keypad with a potentiometer for intuitive local control and parameter adjustment.
• Built-in EMC Filter: Ensures compliance with electromagnetic compatibility standards, reducing interference.
• Integrated Braking Chopper: Facilitates rapid deceleration of motors, enhancing operational safety and control.
• Protection Class: IP20 enclosure rating offers protection against solid objects larger than 12.5mm.
• Flexible Mounting: Designed for versatile installation with both DIN rail and wall-mount options.

Technical Specifications

• Frequency Range: Supports a broad frequency range of 0–500 Hz for diverse application needs.
• Digital Inputs: Equipped with 5 digital inputs for flexible control signal integration.
• Analog Inputs: Includes 1 analog input for precise sensor feedback or external control.
• Analog Outputs: Features 1 analog output for monitoring or control feedback.
• Relay Outputs: Provides 1 relay output for status indication or external device control.
• Overload Capacity: Boasts a 150% overload capacity for 60 seconds, ensuring robust performance under demanding conditions.
• Operating Temperature: Functions reliably in temperatures ranging from -10°C to +40°C without derating.
• Compact Dimensions (H x W x D): Measures 142 mm x 70 mm x 151 mm, ideal for space-constrained installations.
• Lightweight Design: Weighs only 1.1 kg, simplifying handling and installation.
• Certifications: Complies with international standards including CE, UL, cUL, and RoHS, ensuring quality and safety.

Applications

The versatility and compact design of the ABB ACS150-03E-07A3-4 make it suitable for a wide array of applications, particularly in light industrial and OEM settings. Its integrated features optimize performance and simplify implementation across various sectors:

• Light-Duty Conveyors: Provides precise speed control for material handling systems, improving efficiency and reducing wear.
• Pumps and Fans: Optimizes the operation of pumps and fans, leading to significant energy savings and reduced noise levels.
• OEM Equipment: An ideal component for integration into original equipment manufacturing, offering reliability and a small footprint.
• Compact Control Panels: Its reduced size and DIN rail mounting capability make it perfect for installations where space is a premium.

Why Choose This Model?

The ABB ACS150-03E-07A3-4 stands out as a superior choice for your motor control needs due to its exceptional combination of features, performance, and reliability:

• Compact Yet Feature-Rich: Experience a full suite of functionalities, including an integrated keypad, EMC filter, and braking chopper, all within a remarkably small footprint. This eliminates the need for external components, simplifying your system design and reducing overall costs.
• Optimized Performance: With 4 HP output and precise scalar (V/f) control, this drive ensures efficient and stable operation for a diverse range of motors, improving process accuracy and extending equipment lifespan.
• Rapid and Easy Installation: The onboard keypad and flexible mounting options (DIN rail or wall-mount) facilitate quick and straightforward setup, minimizing downtime and accelerating commissioning.
• Unmatched ABB Quality: Benefit from the renowned reliability and engineering excellence of ABB, a global leader in industrial automation. The ACS150-03E-07A3-4 is built to withstand demanding industrial environments, providing long-term, consistent performance for both OEM and general industrial use.

Order Now

Enhance your motor control systems with the high-performance and compact ABB ACS150-03E-07A3-4 variable frequency drive. Benefit from worldwide delivery and comprehensive technical support, ensuring seamless integration and continued operational excellence. Take advantage of a solution that combines advanced features, robust construction, and ABB's trusted expertise to drive efficiency and reliability in your applications.
