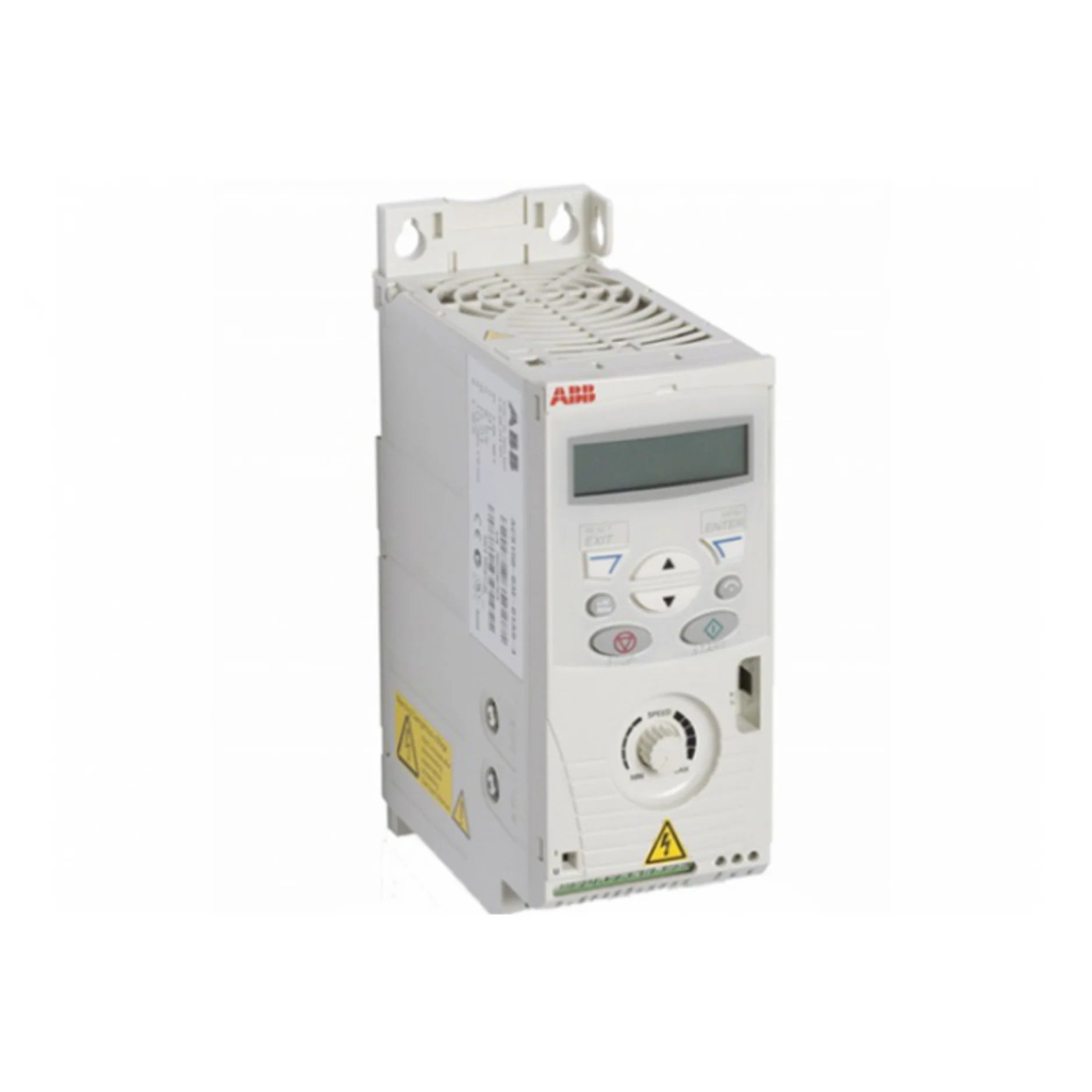

ABB ACS150-03E-05A6-4 | 3ABD68865891

Overview

The ABB ACS150-03E-05A6-4 is a highly efficient and compact variable frequency drive (VFD) meticulously engineered to meet the demanding requirements of both original equipment manufacturers (OEMs) and various light industrial applications. This robust 3 HP VFD, cataloged as 3ABD68865891, seamlessly integrates essential features such as a user-friendly keypad, an advanced EMC filter, and an internal braking chopper. These integrated components significantly simplify installation, drastically reduce commissioning time, and ensure superior motor control performance. Its intelligent design prioritizes space-saving, making it an optimal choice for installations where cabinet space is at a premium.

Key Features

• Powerful Performance: Delivers a robust 3 HP (2.2 kW) output, suitable for a wide range of light industrial machinery.
• Versatile Input: Operates efficiently with a 200–480 V AC, 3-phase input voltage, offering broad compatibility.
• Optimized Current Output: Provides a stable 5.6 A output current for precise motor control.
• Intuitive Control: Features a Scalar (V/f) control type and an integrated keypad with a potentiometer for easy parameter adjustment.
• Integrated EMC Filter: Built-in EMC filter minimizes electromagnetic interference, ensuring compliance and reliable operation in sensitive environments.
• Braking Chopper Included: An integrated braking chopper allows for efficient handling of inertial loads, preventing overvoltage trips and enhancing operational safety.
• Robust Enclosure: IP20 protection class provides defense against solid objects, ideal for installation within control panels.
• Flexible Mounting Options: Designed for both DIN rail or wall-mount installations, offering versatility in system integration.

Technical Specifications

• Frequency Range: Expansive 0–500 Hz operating frequency range, accommodating diverse application needs.
• Digital Inputs: Equipped with 5 configurable digital inputs for versatile control signal integration.
• Analog Inputs: Includes 1 analog input for precise sensor feedback or external control signals.
• Analog Outputs: Features 1 analog output for monitoring or cascading control.
• Relay Outputs: Provides 1 relay output for status indication or external device control.
• Overload Capacity: Boasts a substantial 150% overload capacity for 60 seconds, ensuring resilience during peak demands.
• Operating Temperature: Reliable operation in temperatures ranging from -10°C to +40°C without derating.
• Compact Dimensions: Measures 142 mm (H) x 70 mm (W) x 151 mm (D), perfect for space-constrained installations.
• Lightweight Design: Weighs only 1.1 kg, simplifying handling and installation.
• Global Certifications: Certified with CE, UL, cUL, and RoHS, guaranteeing international compliance and safety standards.

Applications

The ABB ACS150-03E-05A6-4 is a highly versatile VFD, perfectly suited for a multitude of industrial tasks that demand precision and efficiency. Its robust design and integrated features make it an invaluable component for:

• Light Conveyors: Providing smooth and controlled movement for material handling systems.
• Pumps and Fans: Optimizing energy consumption and extending equipment lifespan in fluid control and air circulation systems.
• OEM Machinery: An ideal embedded solution for a wide array of original equipment, enhancing product functionality and reliability.
• Basic Automation Tasks: Serving as a dependable core for simple automated processes, ensuring consistent and accurate operation.

Why Choose This Model?

Choosing the ABB ACS150-03E-05A6-4 signifies an investment in reliability, efficiency, and ease of integration for your industrial operations. This model stands out due to several compelling advantages:

• Optimal Power in a Compact Design: Offering 3 HP within remarkably compact dimensions, it's engineered to fit into tight spaces without compromising on performance, making it ideal for modern, streamlined control panels.
• Minimized Installation Time: With built-in features such as the EMC filter, braking chopper, and keypad, installation complexity and time are significantly reduced. This leads to faster project completion and operational readiness.
• User-Friendly Interface: The integrated keypad with a potentiometer provides an intuitive platform for effortless configuration and monitoring, reducing the learning curve and enabling quick adjustments.
• Trusted Performance: As an ABB product, the ACS150-03E-05A6-4 benefits from a legacy of engineering excellence. It delivers consistent, reliable performance in both demanding OEM settings and general industrial applications, ensuring operational continuity and peace of mind.
• Cost-Effective Solution: Its integrated features and robust design reduce the need for external components, offering a cost-effective solution without compromising on the quality and performance expected from a leading brand.

Order Now

Elevate your motor control capabilities with the ABB ACS150-03E-05A6-4 variable frequency drive. This high-performance, compact solution is readily available for global distribution, supported by efficient logistics to ensure prompt delivery to your location. Secure unparalleled reliability and precision for your OEM and light industrial applications. Explore our comprehensive range of ABB Industrial Drives to complement your current setup and optimize your operational efficiency further.
