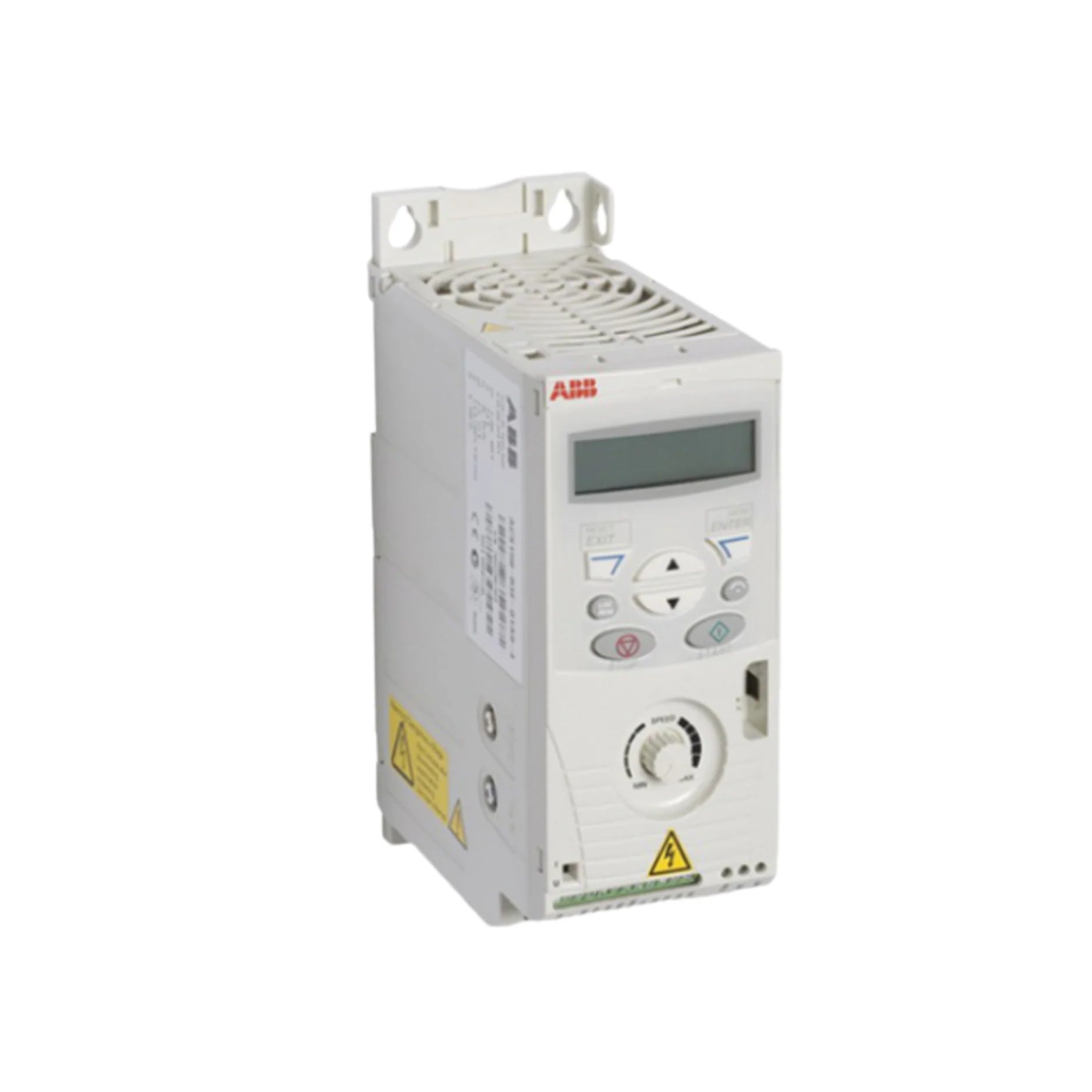

ABB ACS150-03E-04A1-4 | 3ABD68865875

Overview

Experience precision and efficiency in motor control with the ABB ACS150-03E-04A1-4 Compact AC Drive. As a leading solution for light-duty industrial applications, this variable frequency drive (VFD) from ABB delivers unparalleled performance in a compact footprint. Designed with OEMs in mind, the ACS150-03E-04A1-4 seamlessly integrates into diverse systems, providing reliable and energy-efficient operation for various machinery. Its robust construction and intelligent features make it an ideal choice for enhancing productivity and reducing operational costs. From its intuitive built-in keypad to its comprehensive protective measures, this ABB AC drive is engineered for optimal functionality and ease of use, ensuring your motor applications run smoothly and efficiently.

Key Features

• Power Rating: 1.1 kW (1.5 HP)
• Input Voltage: 200–480 V AC, 3-phase
• Output Current: 4.1 A
• Control Type: Scalar (V/f) for straightforward motor regulation
• Interface: User-friendly built-in keypad with integrated potentiometer for easy adjustments
• EMC Filter: Integrated for compliance and reduced electromagnetic interference
• Braking Chopper: Included to manage regenerative braking in demanding applications
• Protection Class: IP20 housing ensures protection against solid objects
• Mounting Options: Versatile DIN rail or wall-mount installation for flexible integration

Technical Specifications

• Product ID: 3ABD68865875
• ABB Type Designation: ACS150-03E-04A1-4
• Global Commercial Alias: ACS150-03E-04A1-4
• Frequency Range: 0–500 Hz for wide application compatibility
• Digital Inputs: 5 programmable digital inputs for flexible control
• Analog Inputs: 1 analog input for precise sensor integration
• Analog Outputs: 1 analog output for feedback and monitoring
• Relay Outputs: 1 relay output for external control and signaling
• Overload Capacity: 150% for 60 seconds, ensuring robust performance under fluctuating loads
• Operating Temperature: -10°C to +40°C (no derating), for consistent operation in various environments
• Dimensions (H x W x D): 142 mm x 70 mm x 151 mm, showcasing its compact design
• Weight: 1.1 kg, facilitating easy handling and installation
• Certifications: CE, UL, cUL, RoHS compliant, affirming global standards and safety

Applications

The ABB ACS150-03E-04A1-4 is engineered to excel in a diverse range of light industrial and OEM applications, offering precise motor control and energy savings. Its adaptability makes it a valuable component in:

• OEM Machinery: Ideal for integration into original equipment, providing reliable and compact motor control solutions.
• Pumps and Fans: Optimizes the operation of fluid and air handling systems, leading to energy efficiency and extended equipment life.
• Light Conveyors: Ensures smooth and controlled movement for various material handling tasks, enhancing productivity and safety.
• Machine Tools: Provides accurate speed and torque control for precision manufacturing processes.

Why Choose This Model?

The ABB ACS150-03E-04A1-4 stands out as a prime choice for discerning engineers and OEMs seeking a blend of performance, reliability, and cost-effectiveness. This compact AC drive is designed to meet the rigorous demands of modern industrial environments. Its integrated features, such as the EMC filter and braking chopper, simplify installation and reduce the need for external components, saving both space and expense. The intuitive built-in keypad with a potentiometer offers straightforward commissioning and operation, minimizing setup time and maximizing efficiency. Built by ABB, a leader in industrial automation, you can trust in the quality and longevity of this VFD, making it an excellent long-term investment for your motor control needs.

Order Now

Elevate your motor control systems with the ABB ACS150-03E-04A1-4 Compact AC Drive. This globally available solution is ready for fast integration into your existing or new applications. Experience the benefits of enhanced efficiency, precise control, and reliable performance that only an industry-leading ABB drive can provide. Don't miss the opportunity to optimize your operations with this advanced VFD. Place your order today and step into a new era of industrial control excellence.
