ABB ACS150-03E-01A9-4 | 3ABD68865824

Overview

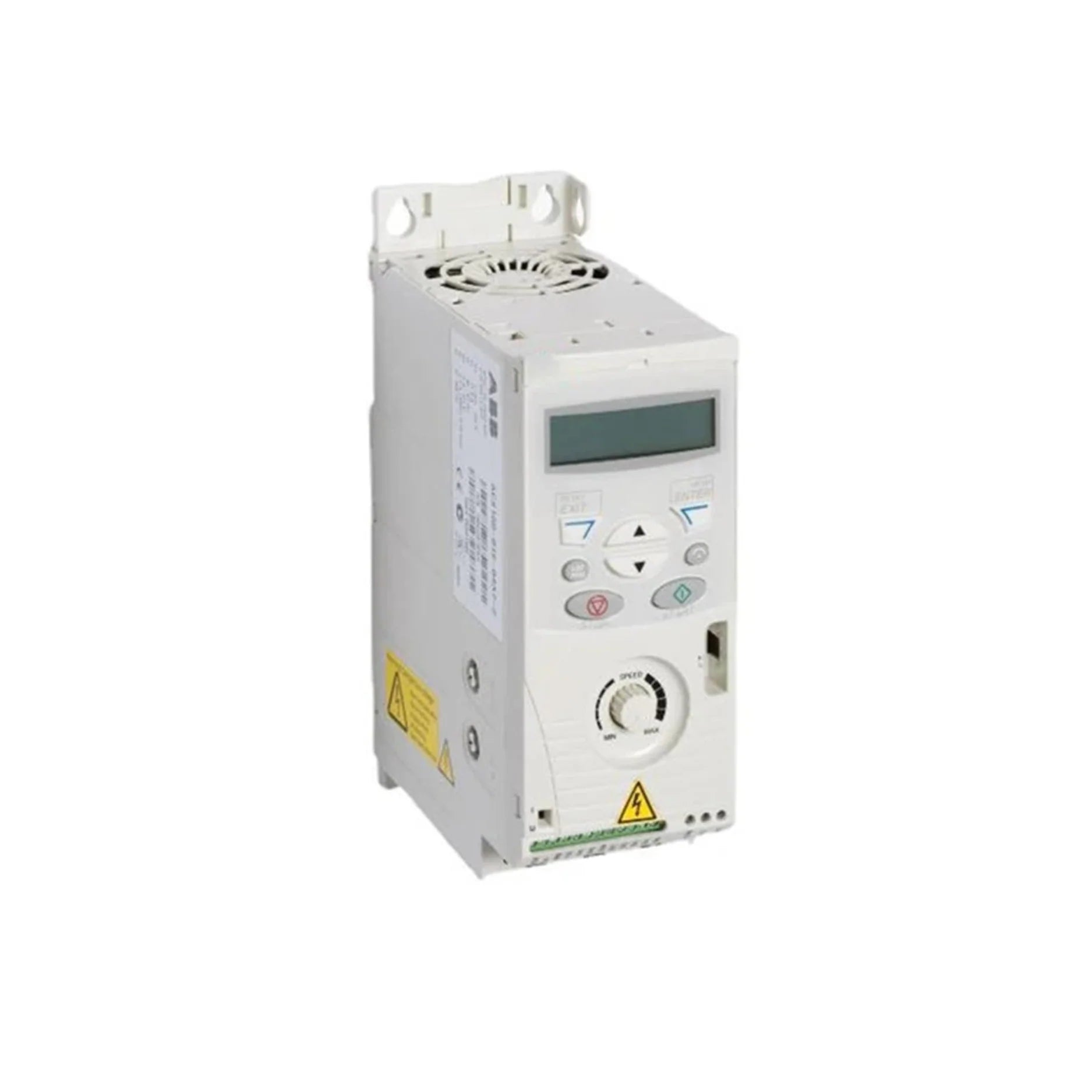

The ABB ACS150-03E-01A9-4 is a meticulously engineered Variable Frequency Drive (VFD) that delivers exceptional motor control in a compact and robust package. Specifically designed for original equipment manufacturers (OEMs) and light industrial applications, this 0.75 HP (0.55 kW) VFD offers an intelligent solution for optimizing the performance and efficiency of small motors. Its integrated features, such as a user-friendly keypad with a potentiometer, an internal EMC filter, and a braking chopper, simplify installation and operation, making it an ideal choice for a wide array of systems requiring precise and reliable motor management. With a focus on ease of use and dependable performance, the ACS150-03E-01A9-4 embodies ABB's commitment to quality and innovation in industrial automation.

Key Features

• Motor Power: 0.75 HP (0.55 kW) for efficient control of small motors.
• Input Voltage: Versatile 200–480 V AC, 3-phase compatibility.
• Output Current: 1.9 A, ensuring stable power delivery to motors.
• Control Method: Reliable Scalar (V/f) control for general-purpose applications.
• Interface: Intuitive built-in keypad with an integrated potentiometer for direct control and parameter adjustment.
• Enclosure: IP20 protection rating, suitable for controlled environments.
• EMC Filter: Integrated EMC filter to meet electromagnetic compatibility requirements and minimize interference.
• Mounting Options: Flexible DIN rail or wall-mount capabilities for easy integration into various setups.
• Braking Chopper: Built-in braking chopper for enhanced control during deceleration, ideal for applications requiring rapid stops.

Technical Specifications

• Frequency Range: Expansive 0–500 Hz for broad application compatibility.
• Digital Inputs: 5 programmable digital inputs for versatile control signaling.
• Analog Inputs: 1 analog input for precise sensor feedback or external control.
• Analog Outputs: 1 analog output for monitoring or control feedback.
• Relay Outputs: 1 relay output for external device control or status indication.
• Overload Capacity: 150% for 60 seconds, providing robustness against temporary load peaks.
• Operating Temperature: -10°C to +40°C without derating, ensuring reliable operation in typical industrial conditions.
• Dimensions (H x W x D): Compact 142 mm x 70 mm x 151 mm, optimizing space utilization.
• Weight: Lightweight at 0.9 kg, facilitating easy handling and installation.
• Certifications: Compliant with CE, UL, cUL, and RoHS standards, guaranteeing safety and environmental responsibility.
• Global Commercial Alias: ACS150-03E-01A9-4
• Product ID: 3ABD68865824
• ABB Type Designation: ACS150-03E-01A9-4

Applications

The ABB ACS150-03E-01A9-4 is engineered to excel in a variety of light-duty motor control scenarios, offering precise and adaptable performance. Its compact design and integrated features make it particularly suitable for:

• OEM Equipment: Seamless integration into a wide range of machinery and systems, enhancing overall product functionality and efficiency.
• Small Fans and Pumps: Optimized control for ventilation systems, circulation pumps, and other fluid handling applications.
• Conveyors and Mixers: Reliable speed and torque control for material handling and mixing processes.
• Laboratory and Workshop Tools: Precision control for specialized equipment used in research, development, and small-scale manufacturing.
• General industrial machinery: Providing a cost-effective and dependable solution for motor control in various light industrial settings.

Why Choose This Model?

The ABB ACS150-03E-01A9-4 stands out as a superior choice for several compelling reasons:

• All-in-One Compact Solution: This VFD integrates essential features like a keypad, EMC filter, and braking chopper into a single, space-saving unit, reducing the need for external components and simplifying system design.
• User-Friendly Interface: The built-in keypad with an intuitive potentiometer ensures straightforward parameter adjustment and motor control, even for operators with varying levels of expertise.
• Fast and Flexible Installation: Designed for efficiency, its compact size and versatile mounting options (DIN rail or wall-mount) allow for quick and adaptable integration into diverse industrial setups.
• Proven ABB Reliability: Backed by ABB's long-standing reputation for quality and durability, this VFD offers dependable performance and an extended operational life, minimizing downtime and maintenance costs. It is an ideal choice for OEMs and small systems where consistent operation is paramount.
• Optimized for Light-Duty Applications: Precisely engineered to meet the demands of light industrial tasks, providing efficient motor control without over-specifying or incurring unnecessary costs.
