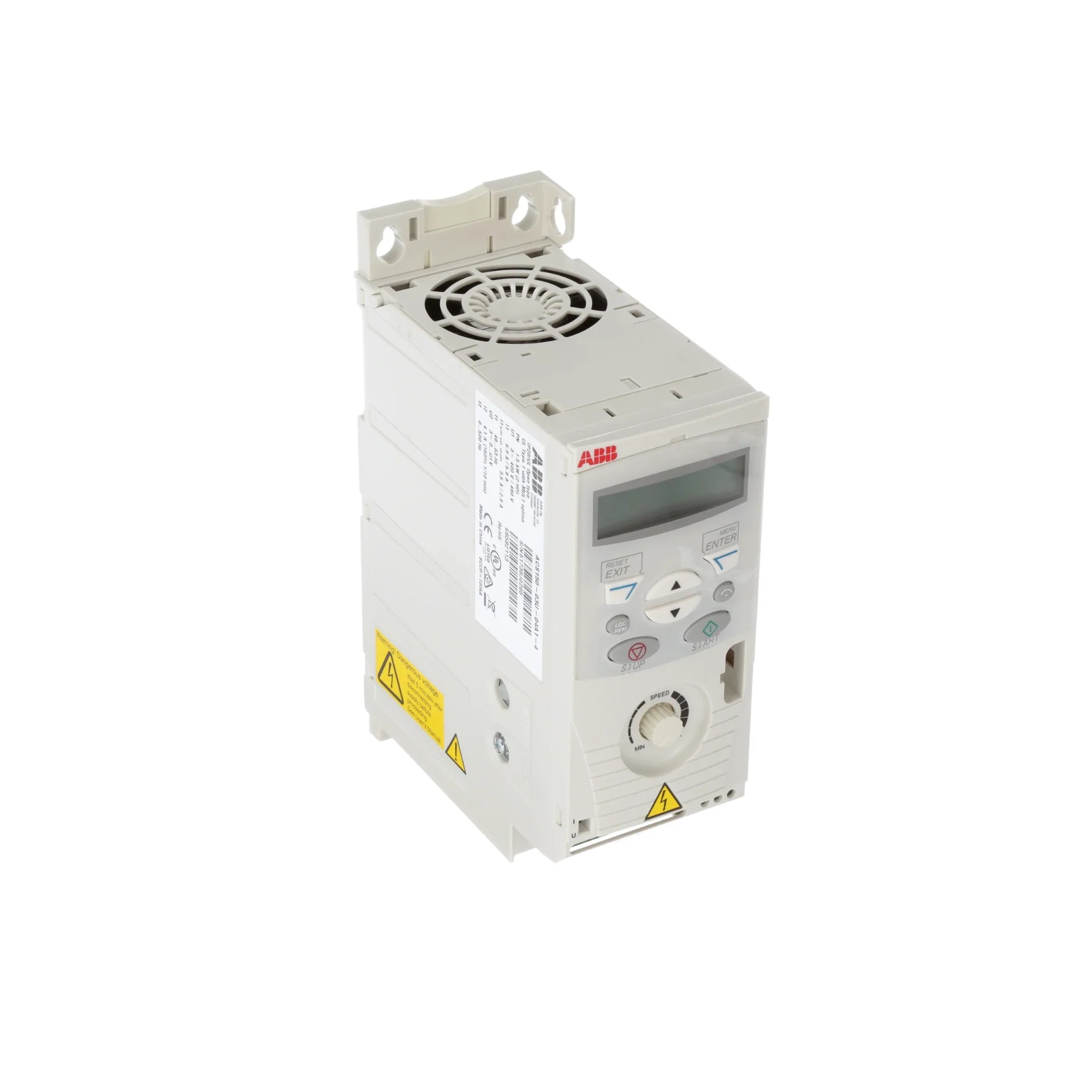

ABB ACS150-01U-09A8-2

Overview

The ABB ACS150-01U-09A8-2 is an advanced 2 HP variable frequency drive (VFD) meticulously engineered to provide exceptional motor control in a compact and efficient package. Ideal for original equipment manufacturers (OEMs) and a wide array of light industrial applications, this VFD is designed for environments requiring single-phase input power. Its user-friendly interface and robust features ensure rapid setup and dependable performance, even in space-constrained installations. With ABB's renowned engineering, the ACS150-01U-09A8-2 delivers precise speed and torque control, enhancing the efficiency and longevity of your machinery.

Key Features

• Powerful Performance: Delivers 2 HP (1.5 kW) for reliable motor operation.
• Versatile Input: Operates efficiently with 200–240 V AC, single-phase input.
• Optimal Output: Provides a robust 9.8 A output current for demanding applications.
• Intuitive Control: Features Scalar (V/f) control for straightforward motor management.
• Integrated Keypad: Equipped with a built-in keypad and potentiometer for easy programming and monitoring.
• EMC Filter Included: Reduces electromagnetic interference, ensuring compliance and reliable operation.
• Integrated Braking Chopper: Enhances braking capabilities for improved safety and control.
• IP20 Protection: Offers protection against solid objects larger than 12.5mm, suitable for enclosed environments.
• Flexible Mounting: Designed for both DIN rail and wall-mountable installations, maximizing installation versatility.

Technical Specifications

• Output Frequency Range: 0–500 Hz for broad application compatibility.
• Digital Inputs: 5 programmable digital inputs for flexible control options.
• Analog Inputs: 1 analog input for precise analog signal integration.
• Analog Outputs: 1 analog output for feedback and external device control.
• Relay Outputs: 1 relay output for status indication and interlocking.
• Overload Capacity: 150% for 60 seconds, providing excellent surge tolerance.
• Ambient Temperature Range: -10°C to +40°C without derating, ensuring reliable performance in various conditions.
• Compact Dimensions (H x W x D): 142 mm x 98 mm x 172 mm, ideal for space-saving installations.
• Lightweight Design: Weighs only 1.2 kg for easy handling and installation.
• Certifications: CE, UL, cUL, RoHS compliant, guaranteeing adherence to international standards.

Applications

The ABB ACS150-01U-09A8-2 is ideal for a diverse range of applications where precise motor control, energy efficiency, and compact design are critical. Its single-phase input capability makes it particularly suitable for:

• Light-Duty Conveyors: Providing smooth and controlled movement for various conveyor systems.
• OEM Equipment: A perfect fit for integration into a wide array of original equipment due to its compact size and robust features.
• Small Pumps and Fans: Optimizing the operation of small pumping and ventilation systems for enhanced efficiency.
• Compact Control Cabinets: Its small footprint allows for easy installation in constrained control cabinet environments.

Why Choose This Model?

Opting for the ABB ACS150-01U-09A8-2 means investing in reliability, efficiency, and ease of use. This VFD stands out with its seamless integration of essential features, making it a superior choice for your motor control needs:

• Optimized Performance: Delivers 2 HP power within an exceptionally compact form factor, maximizing efficiency in minimal space.
• All-in-One Solution: Features a built-in keypad for direct control and an integrated EMC filter, eliminating the need for external components and simplifying installation.
• Flexible Power Input: Designed for single-phase input, offering greater versatility and compatibility with various power supplies.
• Unwavering Reliability: Backed by ABB's world-renowned engineering expertise and extensive support network, ensuring long-term performance and peace of mind.
• Cost-Effective: Its efficiency and ease of installation contribute to lower operational costs and quicker commissioning.

Order Now

Elevate your motor control capabilities with the ABB ACS150-01U-09A8-2. This cutting-edge variable frequency drive is available for immediate order and worldwide delivery. Experience the synergy of compact design, powerful performance, and unparalleled reliability that only ABB can provide. Enhance the efficiency and longevity of your equipment today by securing this essential component for your industrial or OEM applications.
