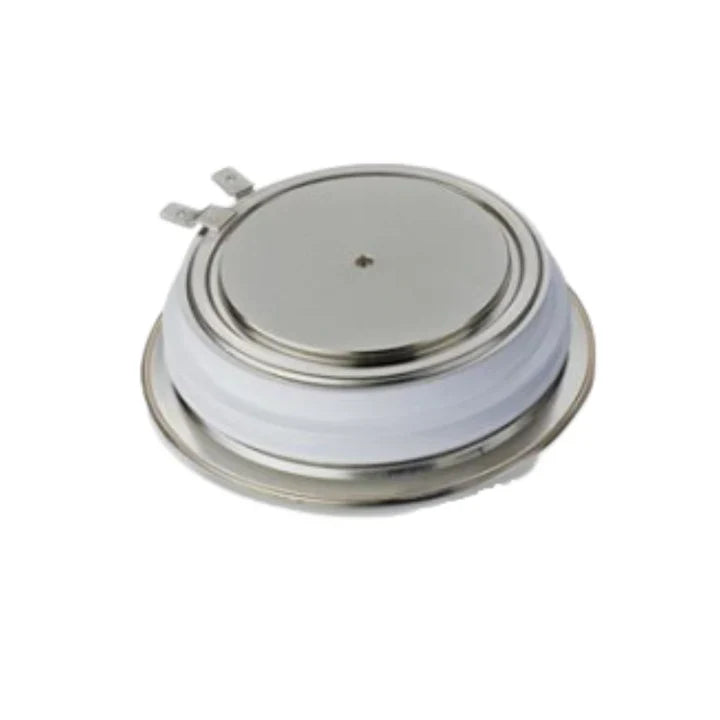

ABB 5SGS16H2500

Overview

The ABB 5SGS16H2500 represents a pinnacle in symmetrical thyristor technology, meticulously engineered for high-power industrial applications. This robust component delivers exceptional performance in environments demanding precise high-current and high-voltage switching. With an impressive blocking voltage of 2500 V and a formidable current rating of 2500 A, the 5SGS16H2500 is adept at bi-directional current control. Its design ensures seamless integration into demanding systems such as AC power regulation units, advanced cycloconverters, and heavy-duty rectifiers. The symmetric architecture guarantees consistent and balanced conduction across both directions, ensuring unparalleled reliability and operational stability for your critical systems.

Key Features

• Rated Voltage: 2500 V – Provides robust performance in high-voltage circuits.
• RMS Current Rating: 2500 A – Capable of handling substantial current loads with efficiency.
• Symmetric Blocking Capability: Ensures reliable and balanced operation for bi-directional power flow.
• High Surge Current Tolerance: Designed to withstand temporary overcurrent conditions, enhancing system resilience.
• Robust Mechanical Package: Built for durability and longevity in challenging industrial settings.
• Optimized for Low Switching Losses: Enhances energy efficiency and reduces thermal stress on the device.
• Long Service Life Under Industrial Stress: Engineered for sustained performance, minimizing maintenance and replacement needs.

Technical Specifications

• Product ID: 5SGS16H2500
• Type: Symmetric Thyristor
• VDRM/VRRM: 2500 V
• IT(AV): 2500 A
• Switching Type: Fast symmetric
• Surge Capability: High
• Mounting: Press-pack
• Cooling: Air or liquid cooling as required
• Housing: Industry-standard round package

Applications

The versatility and robust performance of the ABB 5SGS16H2500 make it an ideal choice for a diverse range of high-power applications, including:

• Cycloconverters: Essential for frequency conversion in various industrial machinery.
• AC Voltage Regulators: Providing stable and efficient control in power distribution systems.
• Power Supplies for Industrial Machinery: Ensuring reliable power delivery to heavy-duty equipment.
• Medium-Voltage Drives: Critical for performance and efficiency in motor control applications.
• High-Power Rectifiers: Converting AC to DC for large-scale industrial processes.
• Static Power Controllers: For precise and dynamic control of electrical power.

Why Choose This Model?

The ABB 5SGS16H2500 stands out as a superior choice for several compelling reasons:

• Reliable Bi-directional Performance: Ensures consistent operation in both current directions, crucial for symmetrical AC power control.
• Optimized for AC Control: Perfectly suited for systems requiring balanced and efficient AC power regulation.
• ABB's Proven Quality: Benefit from ABB's extensive heritage in engineering excellence and unwavering commitment to quality in power electronics.
• High Thermal Endurance: Designed to perform reliably under elevated temperatures, extending operational limits.
• Exceptional Electrical Strength: Offers superior resistance to electrical stresses, guaranteeing long-term durability and safety.

Order Now

Elevate your power management systems with the high-performance ABB 5SGS16H2500 symmetric thyristor. This essential component is currently in stock and readily available for worldwide shipment, ensuring your projects stay on schedule. Experience the reliability and efficiency that only ABB can deliver.
