ABB 5SGS12F4500

Overview

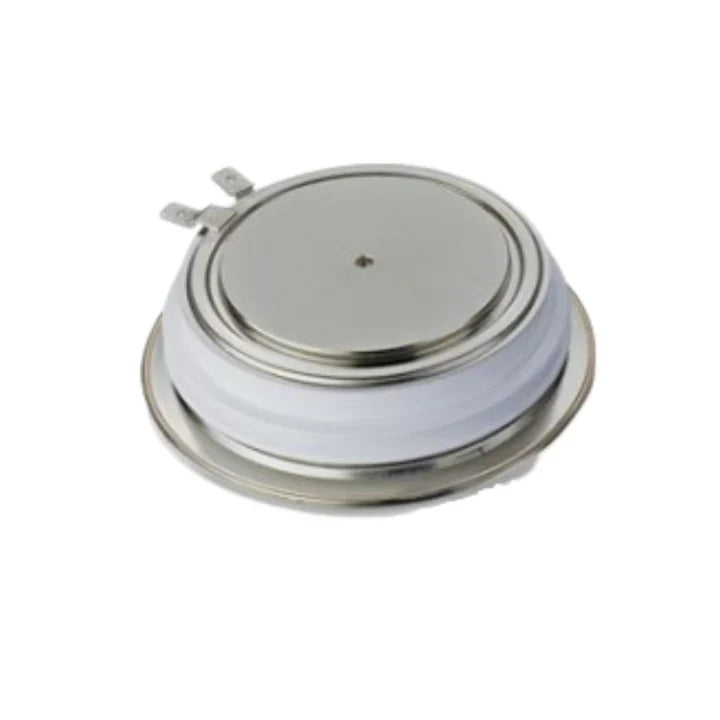

The ABB 5SGS12F4500 is a cutting-edge symmetric thyristor, expertly engineered for unparalleled performance in high-voltage AC control and demanding industrial power conversion applications. With a robust rating of 4500 V, this advanced semiconductor device excels in providing reliable bi-directional blocking, making it an indispensable component for systems requiring precise and efficient AC switching. Its sophisticated design ensures outstanding reliability and superior thermal performance, critical in environments where continuous operation and stability are paramount. The 5SGS12F4500 boasts a rugged press-pack construction and impressively low switching losses, solidifying its position as the premier choice for medium- and high-power systems that operate under the most stringent and challenging conditions. This thyristor represents ABB's commitment to delivering innovative solutions that enhance the efficiency and longevity of power electronics.

Key Features

• Rated voltage: 4500 V for high-power applications.
• Symmetric blocking: Enables precise bi-directional current control, enhancing system flexibility.
• High surge current capability: Ensures resilience and reliability under transient load conditions.
• Optimized for low conduction and switching losses: Maximizes energy efficiency and reduces operational costs.
• Rugged industry-standard press-pack package: Provides durability and facilitates straightforward integration.
• Exceptional thermal stability: Guarantees consistent performance across varying temperature ranges.
• Reliable ABB semiconductor design: Built on decades of expertise for unwavering quality and longevity.
• Fast switching class: Ideal for dynamic power control applications.

Technical Specifications

• Product ID: 5SGS12F4500
• Type: Symmetric Thyristor
• VDRM/VRRM: 4500 V
• Thyristor Type: Symmetrical (bi-directional blocking)
• Switching Class: Fast
• Mounting: Press-pack
• Cooling: Adaptable for air or liquid-cooled installations, depending on system requirements.
• Housing: Round outline, meticulously designed for seamless integration into industrial power systems.

Applications

The versatility and robust performance of the ABB 5SGS12F4500 symmetric thyristor make it suitable for a diverse array of critical industrial applications, including:

• AC and DC motor control systems: Providing precise and efficient power regulation for optimal motor performance.
• Cycloconverters: Essential for frequency conversion in high-power AC drive systems.
• High-power rectifiers: Ensuring stable and reliable DC power conversion from AC sources.
• Industrial static converters: Supporting a wide range of power electronics applications requiring robust switching.
• Medium-voltage drives: Enabling efficient control and operation of industrial motors and machinery.
• Power factor correction systems: Enhancing electrical efficiency and reducing energy waste in industrial grids.

Why Choose This Model?

Opting for the ABB 5SGS12F4500 symmetric thyristor means investing in superior performance and unwavering reliability. This model embodies trusted ABB technology, specifically engineered for highly dependable AC switching operations. Its design prioritizes continuous functionality even within the most challenging and harsh industrial environments, ensuring uninterrupted performance and extended service life. The 5SGS12F4500 offers versatile performance with its bi-directional current flow capability, providing unparalleled flexibility in power control applications. Furthermore, its exceptionally high voltage rating of 4500 V makes it the ideal solution for the most demanding industrial power applications where precision, safety, and efficiency are paramount. Experience the peace of mind that comes with deploying a component designed for excellence, backed by ABB's legacy of innovation.

Order Now

The high-performance ABB 5SGS12F4500 symmetric thyristor is currently in stock and readily available for immediate dispatch. We proudly offer worldwide shipping to ensure that this crucial component reaches your operations no matter where you are located. Enhance your power systems with a component that promises reliability, efficiency, and superior control.
