Overview

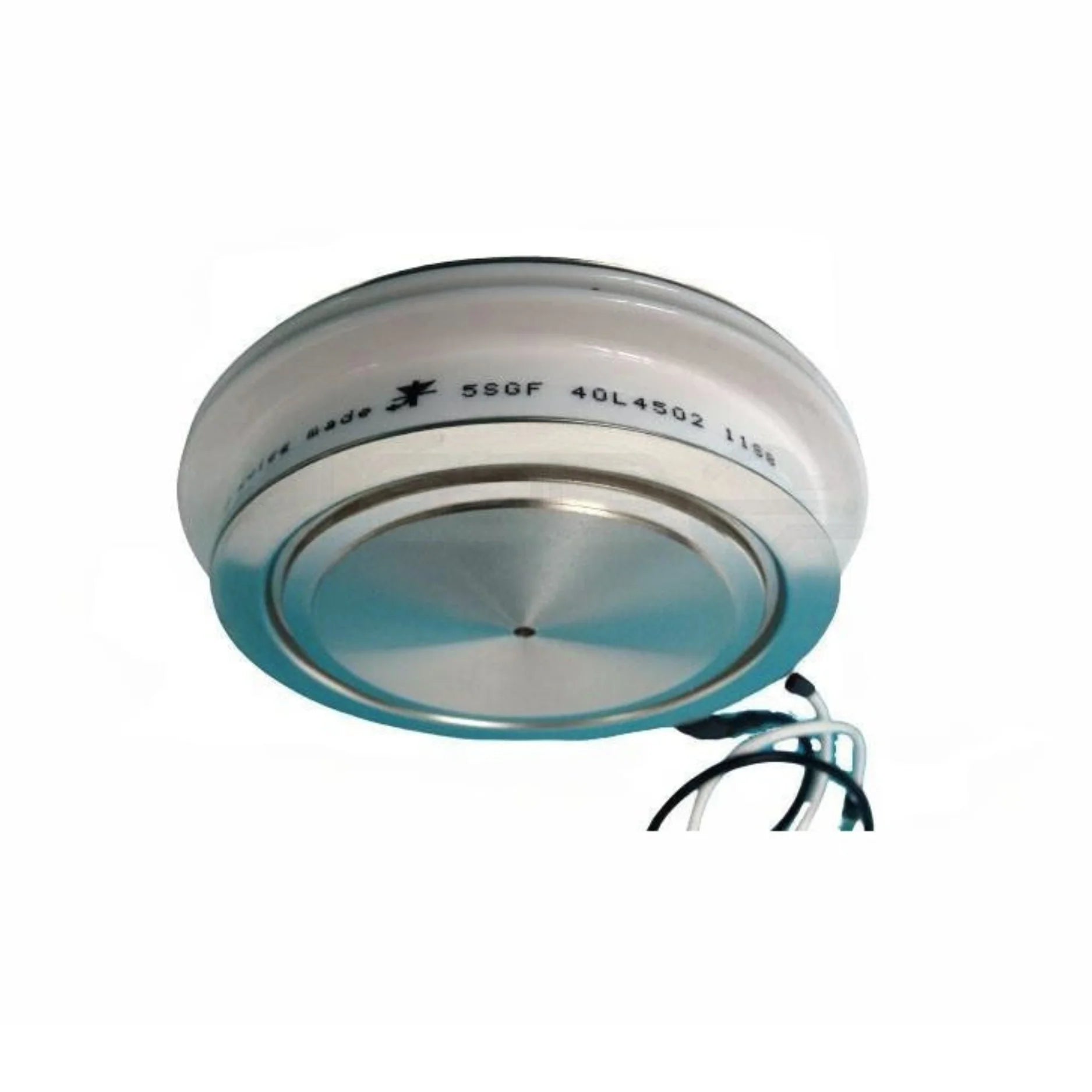

The ABB 5SGF40L4502 is an exceptional asymmetric Gate Turn-Off (GTO) thyristor, meticulously engineered for the most demanding high-power applications. This robust component boasts an impressive current rating of 4000 A and a formidable blocking voltage of 4500 V, making it an ideal solution for critical industrial and grid infrastructure. Leveraging ABB’s cutting-edge, patented free-floating silicon technology, the 5SGF40L4502 delivers unparalleled efficiency through significantly reduced switching and conduction losses. Its design incorporates an advanced annular gate electrode and is encapsulated in a durable, industry-standard round housing, ensuring reliable performance and easy integration into existing systems. This GTO thyristor is particularly well-suited for deployment in crucial sectors such as railway traction, High Voltage Direct Current (HVDC) transmission, and sophisticated industrial power systems where reliability and performance are paramount.

Key Features

  • High Current Rating: Precisely rated at 4000 A for heavy-duty power control.
  • Superior Blocking Voltage: Achieves a formidable 4500 V, ensuring robust operation in high-voltage environments.
  • Annular Gate Control: Features an advanced annular gate electrode for precise and efficient current manipulation.
  • Optimized Thermal Management: Utilizes free-floating silicon technology to enhance thermal behavior and extend operational lifespan.
  • Minimized Power Losses: Engineered for exceptionally low switching and conduction losses, boosting system efficiency.
  • Radiation Resistant: Designed with a radiation-resistant structure, providing resilience in challenging operational conditions, including cosmic radiation.
  • Robust Housing: Encased in an industry-standard round GTO housing for durability and universal compatibility.
  • Secure Installation: Guarantees secure mounting with a high force capacity of 40 kN.

Technical Specifications

  • Product ID: 5SGF40L4502
  • Type: Asymmetric Gate Turn-Off Thyristor (GTO)
  • ITGQM (Peak Turn-Off Current): 4000 A
  • VDRM (Repetitive Peak Off-State Voltage): 4500 V
  • Mounting Force: 40 kN
  • Gate Structure: Annular electrode
  • Housing Type: Industry-standard round
  • Silicon Design: Free-floating chip
  • Losses: Low on-state and switching
  • Radiation Resistance: Yes (cosmic radiation rated)

Applications

The ABB 5SGF40L4502 GTO thyristor is a versatile and indispensable component across a broad spectrum of high-power applications, enabling efficient and reliable energy conversion and control:

  • Railway Traction Drives: Essential for controlling the power in electric locomotives and trains, ensuring smooth and efficient operation.
  • HVDC Transmission Systems: Crucial for high-voltage direct current power transmission grids, facilitating long-distance electricity transfer with minimal loss.
  • High-Voltage Static Converters: Integral to various static converter systems requiring precise control of high voltages.
  • Industrial Inverter Systems: Powers heavy industrial machinery and processes requiring high-frequency power conversion.
  • Energy Control and Storage Modules: Plays a vital role in advanced energy management systems, including renewable energy integration and battery storage.

Why Choose This Model?

The ABB 5SGF40L4502 represents the pinnacle of GTO thyristor technology, offering compelling advantages for discerning engineers and system integrators:

  • Unmatched Power Handling: Delivers superior current and voltage capacity, making it the ideal choice for even the most critical and demanding applications.
  • Optimized Performance: Benefits from ABB’s proprietary free-floating silicon technology, resulting in enhanced thermal characteristics and exceptional electrical performance.
  • Extreme Durability: Built to withstand challenging industrial and power grid environments, ensuring long-term reliability and operational stability.
  • Proven ABB Reliability: Backed by ABB’s legacy of innovation and quality, guaranteeing a robust and long-lasting design.
  • Seamless Integration: Designed for full compatibility with standard GTO system layouts, simplifying integration and reducing development time.

Order Now

Elevate your power control systems with the ABB 5SGF40L4502 GTO thyristor. This high-reliability component is engineered for optimal power switching and conversion in the most demanding environments. We are proud to offer worldwide shipping, ensuring that this superior technology is accessible wherever your projects are located.

For a comprehensive selection of high-performance power semiconductors, explore our full range of ABB Fast Asymmetric GTO Thyristors and discover our complete portfolio of ABB GTO Thyristors, including symmetric, fast, and asymmetric models, to find the perfect solution for your specific needs.
