ABB 5SGA40L4501

Overview

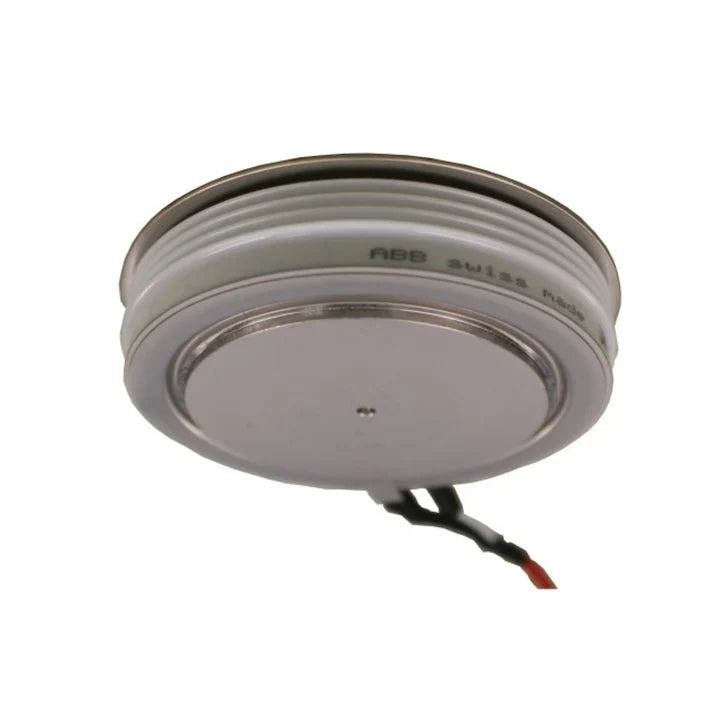

The ABB 5SGA40L4501 stands as a paramount achievement in power semiconductor technology, representing a high-performance asymmetric Gate Turn-Off (GTO) thyristor. Engineered for the most demanding applications, this robust component boasts an impressive current rating of 4000 amperes and a blocking voltage of 4500 volts. At its core, the 5SGA40L4501 integrates ABB's proprietary free-floating silicon technology, a design innovation that significantly minimizes both switching and conduction losses. Its construction is meticulously optimized for extreme operational environments, featuring a sturdy 120 mm round housing that ensures durability and reliable performance. A critical design parameter is its requirement for a 40 kN mounting force, highlighting its mechanical resilience and ability to withstand substantial stress. These characteristics make the 5SGA40L4501 an indispensable component for critical high-voltage power converters, sophisticated HVDC (High Voltage Direct Current) systems, and efficient traction inverters, providing unwavering performance where power control is paramount.

Key Features

• Exceptional Current and Voltage Ratings: Engineered for formidable power handling, featuring a rated current of 4000 A and a blocking voltage of 4500 V, making it suitable for ultra-high-power applications.
• Optimized Current Distribution: Incorporates an advanced annular gate electrode design, ensuring uniform current distribution across the device, which enhances efficiency and extends operational lifespan.
• Superior Efficiency: Utilizes free-floating silicon technology to dramatically reduce switching and on-state losses, contributing to higher energy efficiency and cooler operation.
• Radiation Resistant: Constructed with materials and design principles that offer enhanced resistance to cosmic radiation, ensuring reliability in sensitive or high-altitude applications.
• Robust Mechanical Design: Features high mechanical strength, evidenced by its 40 kN mounting force requirement, guaranteeing stable and secure integration into power systems.
• Industry-Standard Housing: Housed in an industry-standard 120 mm round GTO package, ensuring compatibility and ease of integration into existing designs and manufacturing processes.

Technical Specifications

• Product ID: 5SGA40L4501
• Type: Asymmetric Gate Turn-Off Thyristor (GTO)
• Rated Turn-Off Current (ITGQM): 4000 A
• Repetitive Peak Off-State Voltage (VDRM): 4500 V
• Package Diameter: 120 mm
• Package Height: 26 mm
• Gross Weight: 1.5 kg
• Mounting Force: 40 kN
• Gate Structure: Annular
• Housing Type: Industry-standard round
• Design Features: Free-floating silicon, cosmic radiation resistant

Applications

The ABB 5SGA40L4501 GTO thyristor is a versatile powerhouse, ideally suited for a diverse range of high-voltage and high-current applications:

• HVDC Transmission Systems: Crucial for efficient and reliable long-distance power transmission, facilitating the conversion and control of massive electrical power flows.
• Traction and Railway Inverters: Powers modern railway systems, offering robust control for electric locomotives and high-speed trains, ensuring smooth and dependable operation.
• Static Power Converters and Inverters: Essential for industrial power conversion, including renewable energy inverters (solar, wind) and uninterrupted power supplies (UPS) where precise control of high power is needed.
• High-Voltage Motor Control: Provides precise and efficient control for large industrial motors, reducing energy consumption and extending equipment lifespan.
• Industrial and Energy Storage Switching Systems: Integrates into advanced energy storage solutions and heavy industrial switching circuits, optimizing power management and system stability.

Why Choose This Model?

Opting for the ABB 5SGA40L4501 means investing in unparalleled performance and reliability for your most challenging power applications. This specific model stands out in the market for several compelling reasons:

• Leading Current Rating: It is recognized as one of the highest current-rated GTOs available globally, offering solutions for applications that demand extreme power handling capabilities.
• Unwavering Reliability: Built upon ABB's long-standing reputation for quality and engineering excellence, ensuring long-term reliability and consistent performance in mission-critical high-voltage systems.
• Proven ABB Technology: Benefits from ABB's cutting-edge technology and robust construction methodologies, guaranteeing a product that performs optimally under duress.
• Exceptional Efficiency: Delivers outstanding thermal and electrical efficiency, which translates directly into reduced operational costs and improved system performance.
• Designed for Harsh Environments: Engineered to withstand and perform reliably in the most demanding and harsh operating conditions, making it a dependable choice for industrial and outdoor installations.

Order Now

The ABB 5SGA40L4501 is the definitive solution for ultra-high current and voltage switching requirements within mission-critical power systems. Its advanced design, coupled with ABB's trusted manufacturing, ensures optimal performance, efficiency, and longevity. Secure the vital component for your high-power applications today. We facilitate global shipping to meet your needs, wherever your operations may be. For a broader perspective on ABB's offerings, explore our extensive range of ABB Asymmetric GTO Thyristors or review the complete family of ABB GTO Thyristors, including Symmetric, Fast & Asymmetric Models.
