ABB 5SGA30J2501

Overview

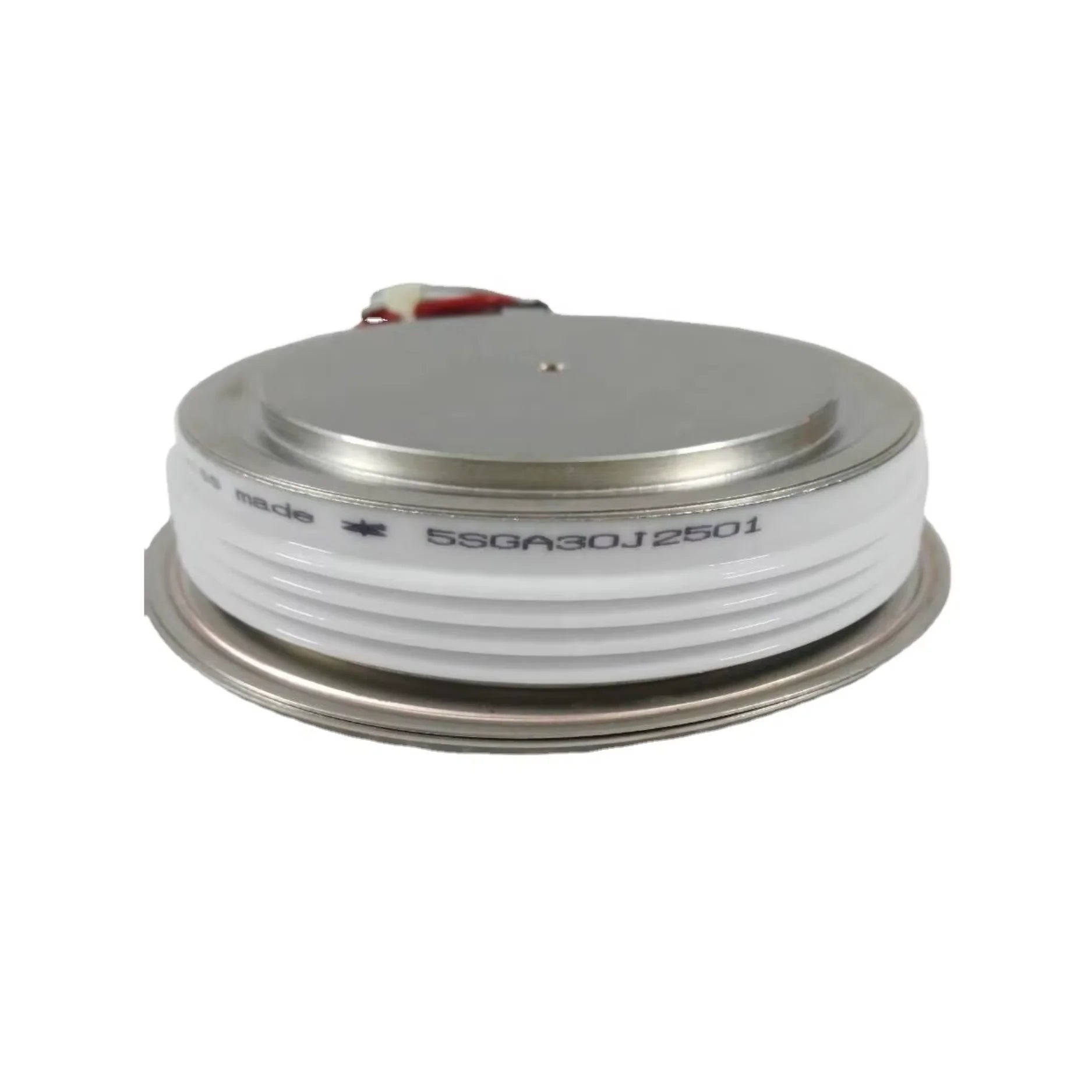

The ABB 5SGA30J2501 stands as a pinnacle of power semiconductor technology, engineered for the most demanding high-current applications. This asymmetric Gate Turn-Off (GTO) thyristor delivers unparalleled performance with a robust rating of 3000 A and a blocking voltage of 2500 V. At its core, the 5SGA30J2501 incorporates ABB's patented free-floating silicon technology, a design marvel that significantly minimizes both switching and conduction losses, thereby enhancing overall system efficiency and reducing operational costs. Housed within an industry-standard 108.5 mm round package, its innovative annular gate electrode ensures uniform current distribution and optimal device operation. Built for durability, this GTO thyristor boasts exceptional mechanical strength, supporting a mounting force of 40 kN, making it the ideal choice for mission-critical applications such as rail traction, high-voltage direct current (HVDC) transmission, and advanced high-power converter systems worldwide.

Key Features

• High Current Capability: Rated for an impressive 3000 A, enabling robust control in heavy-duty power circuits.
• Superior Blocking Voltage: Reliable operation up to 2500 V, suitable for high-voltage environments.
• Asymmetric Configuration: Optimized for unidirectional blocking, common in chopper and inverter applications.
• Annular Gate Electrode: Ensures uniform current turn-on and turn-off, contributing to enhanced device longevity and performance.
• Patented Free-Floating Silicon Technology: A cutting-edge design that significantly reduces energy losses during switching and conduction.
• High Cosmic Radiation Immunity: Engineered to withstand harsh environments, ensuring stability and reliability in diverse operational settings.
• Optimized Efficiency: Achieves remarkably low switching and conduction losses, leading to improved system efficacy and reduced heat generation.
• Standardized Housing: Features a 108.5 mm industry-standard round package, facilitating easy integration into existing designs.
• Exceptional Mechanical Robustness: Capable of withstanding a 40 kN mounting force, ensuring secure and stable installation in strenuous applications.

Technical Specifications

• Product ID: 5SGA30J2501
• Type: Asymmetric Gate Turn-Off Thyristor (GTO)
• ITGQM (Controllable Turn-Off Current): 3000 A
• VDRM (Repetitive Peak Off-State Voltage): 2500 V
• Package Diameter: 108.5 mm
• Package Height: 26 mm
• Gross Weight: 0.8 kg
• Mounting Force: 40 kN
• Electrode Type: Annular gate
• Silicon Technology: Free-floating
• Radiation Resistance: Cosmic withstand rated
• Package Type: Industry-standard round housing

Applications

The ABB 5SGA30J2501 GTO thyristor is the preferred component for a wide array of high-power applications where reliability, efficiency, and robust performance are paramount:

• Rail Traction Inverters: Providing precise and efficient power control for modern electric railway systems.
• HVDC Transmission Systems: Crucial for long-distance bulk power transfer, ensuring grid stability and efficiency.
• Industrial Motor Drives: Delivering powerful and controlled motor operation in heavy industrial machinery.
• Static VAR Compensators (SVC): Enhancing power quality and stability in electrical grids.
• Heavy-Duty DC Choppers and Converters: Ideal for demanding power conversion tasks in various industrial and utility settings.

Why Choose This Model?

Opting for the ABB 5SGA30J2501 means investing in a solution that redefines power control. Its ability to manage extremely high current demands with minimal losses makes it a cornerstone for efficient and sustainable power systems. Backed by ABB's renowned commitment to quality and industrial reliability, this GTO thyristor guarantees consistent performance even in the most strenuous operational conditions. The exceptional mechanical robustness, capable of withstanding a 40 kN mounting force, ensures long-term stability and durability. Furthermore, its design specifically addresses the challenges of harsh and high-radiation environments, providing peace of mind for critical infrastructure. For applications where failure is not an option and maximum current control is essential, the 5SGA30J2501 offers an unmatched combination of cutting-edge technology, proven reliability, and superior performance.

Order Now

Elevate your power electronic systems with the ABB 5SGA30J2501 asymmetric GTO thyristor. This high-performance component offers the precise current control, efficiency, and durability required for today's most demanding applications. With its robust 3000 A, 2500 V rating and advanced low-loss design, it's the definitive choice for professionals seeking uncompromising quality. Available now for immediate global shipping, secure your competitive advantage by integrating ABB's industry-leading technology into your next project. Explore our comprehensive selection of high-quality ABB thyristors today!
