ABB 5SGA25H2501

Overview

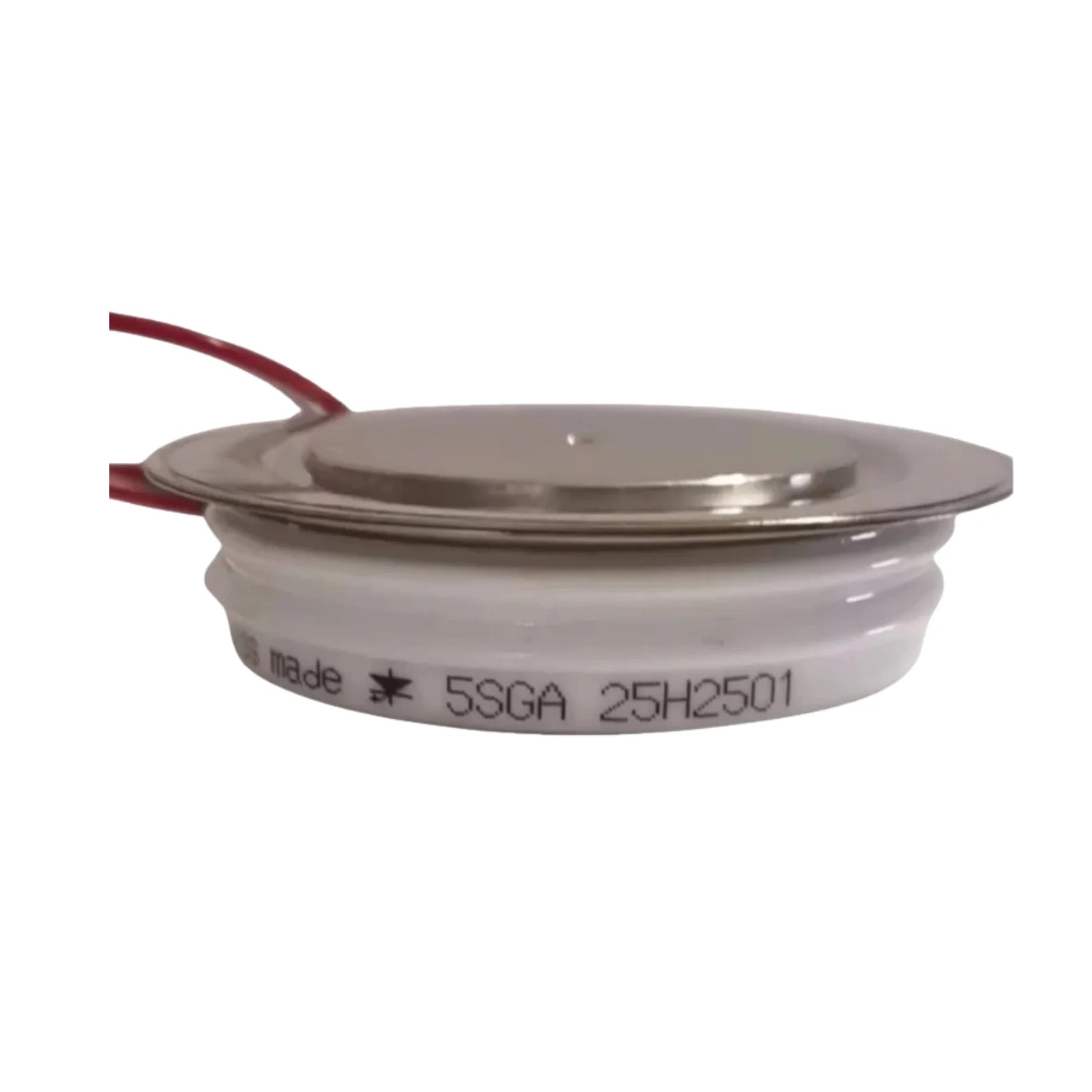

The ABB 5SGA25H2501 represents the pinnacle of high-current Gate Turn-Off (GTO) thyristor technology, meticulously engineered by ABB for critical power electronics applications across diverse industries. This asymmetric GTO thyristor boasts an impressive 2500 A current rating and a robust 2500 V blocking voltage, making it an indispensable component for systems requiring precise and efficient power conversion.

Leveraging ABB's patented free-floating silicon technology, an innovative annular gate electrode, and housed within an industry-standard 93 mm package, the 5SGA25H2501 is designed from the ground up to significantly minimize both conduction and switching losses. This commitment to efficiency extends to its exceptional reliability, ensuring peak performance even in the most demanding high-power environments, from industrial motor drives to advanced rail traction systems and sophisticated energy transmission infrastructure.

Key Features

• Ultra-High Current Capacity: Rated for an impressive 2500 A, capable of handling significant power loads.
• Robust Blocking Voltage: Features a 2500 V blocking voltage for enhanced system safety and performance.
• Asymmetric GTO Design: Optimized for rapid and efficient gate turn-off operations, improving system dynamics.
• Minimised Energy Losses: Engineered with low switching and on-state losses, contributing to superior energy efficiency.
• Advanced Annular Gate Structure: Facilitates uniform current distribution and enhanced device longevity.
• Free-Floating Silicon Technology: A proprietary design feature ensuring high reliability and thermal stability under varying conditions.
• Cosmic Radiation Resistance: Built to withstand harsh operating environments, enhancing durability and operational lifespan.
• Standardized Form Factor: Resides in an industry-standard 93 mm round housing for seamless integration and compatibility.
• Optimized Mounting Force: Designed for an exact 20 kN mounting force, ensuring secure installation and optimal thermal contact.

Technical Specifications

• Product ID: 5SGA25H2501
• Type: Asymmetric Gate Turn-Off Thyristor (GTO)
• ITGQM (Peak Turn-Off Current): 2500 A
• VDRM (Peak Repetitive Off-State Voltage): 2500 V
• Package Diameter: 93 mm
• Package Height: 26 mm
• Gross Weight: 0.8 kg
• Mounting Force: 20 kN
• Housing Type: Industry-standard round
• Gate Configuration: Annular electrode
• Design Features: Free-floating silicon, low loss characteristics, high resistance to cosmic radiation

Applications

The versatility and robust performance of the ABB 5SGA25H2501 GTO thyristor make it an ideal choice for a wide spectrum of demanding high-power applications, including but not limited to:

• Rail Traction Systems: Providing reliable and efficient power conversion for electric locomotives, trams, and high-speed trains.
• Industrial Motor Drives: Enabling precise speed and torque control for heavy-duty industrial machinery, enhancing operational efficiency.
• Power Inverters and Converters: Crucial for high-power DC-to-AC and AC-to-DC conversion in various industrial and renewable energy settings.
• Static VAR Compensators (SVCs): Improving power factor and voltage stability in large electrical grids, ensuring grid reliability.
• HVDC and Energy Transmission Systems: Essential for efficient long-distance power transmission and grid interconnection.

Why Choose This Model?

Choosing the ABB 5SGA25H2501 means investing in unparalleled performance, reliability, and efficiency for your high-power applications. This GTO thyristor stands out due to several critical advantages:

• Exceptional Power Handling: Delivers high current capacity with minimal power losses, directly translating to energy savings and reduced operational costs.
• Engineered for Durability: Its mechanically robust design and excellent thermal stability ensure long-term, reliable operation even in the most challenging environments.
• Trusted ABB Quality: Backed by ABB’s renowned reputation for semiconductor innovation and reliability, ensuring a consistent and high-quality component.
• Seamless Integration: The compact, industry-standard footprint allows for straightforward integration into existing systems or new high-power designs.
• Versatile Solution: Perfect for upgrading legacy systems or powering new, cutting-edge high-power builds, offering future-proof performance.

Order Now

Elevate your power electronics systems with the ABB 5SGA25H2501 GTO thyristor. Built for superior performance, unwavering reliability, and highly efficient switching, this component is ready to meet the rigorous demands of global industrial, traction, and energy systems. Experience the difference that premium ABB engineering can make in optimizing your high-power applications.

Don't compromise on power control. Secure your ABB 5SGA25H2501 today and lay the foundation for a more efficient and reliable power infrastructure.
