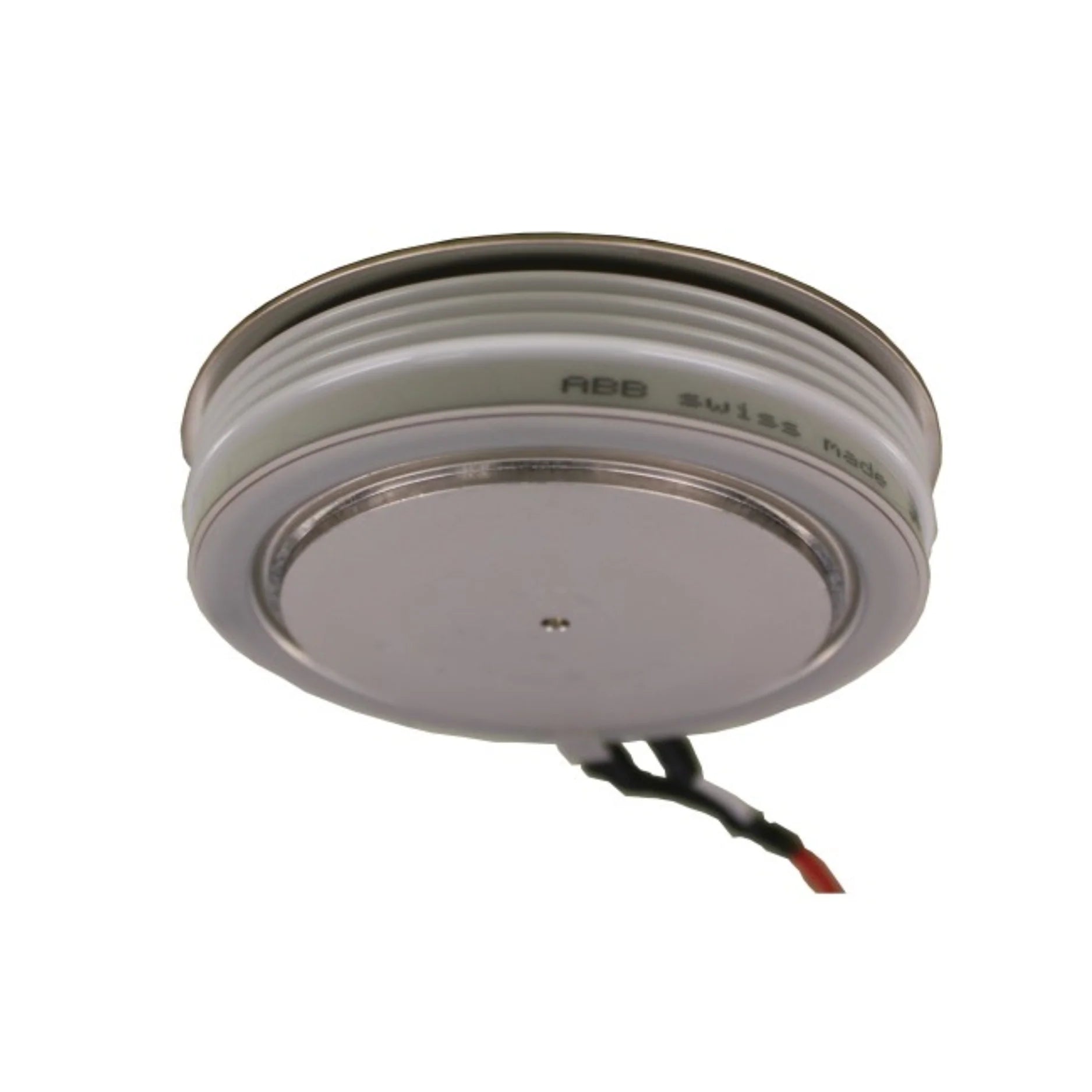

ABB 5SGA15F2502

Overview

Engineered for the most demanding high-power applications, the ABB 5SGA15F2502 is an exceptional asymmetric Gate Turn-Off (GTO) thyristor. This advanced component boasts an impressive rating of 1500 A and 2500 V, making it a cornerstone for robust industrial and traction systems. Leveraging ABB's patented free-floating silicon technology, the 5SGA15F2502 delivers superior performance through minimized on-state and switching losses. Its innovative annular gate electrode design ensures enhanced reliability, consistent current distribution, and precise control.

Encased in a durable, industry-standard 75 mm housing, this GTO thyristor is built to withstand extreme conditions, including cosmic radiation, guaranteeing long-term stability and operational integrity in critical environments. For engineers and system integrators seeking unparalleled power handling and reliability, the ABB 5SGA15F2502 represents the pinnacle of semiconductor technology.

Key Features

• High-Current Capability: Rated at 1500 A for demanding power applications.
• High Blocking Voltage: Delivers robust performance with a 2500 V blocking voltage.
• Asymmetric GTO Design: Optimized for efficient turn-off characteristics.
• Reduced Power Losses: Features low conduction and switching losses, enhancing energy efficiency.
• Patented Free-Floating Silicon Structure: Improves thermal and mechanical resilience.
• Annular Gate Electrode: Ensures superior current distribution and precise gate control.
• Cosmic Radiation Withstand Capability: Designed for reliability in harsh environments.
• Standard 75 mm Package: Industry-standard housing for straightforward integration.
• Robust Mechanical Construction: Withstands a high mounting force of 15 kN for secure installation.
• Versatile Application: Ideal for high-power inverters, industrial drives, and traction systems.

Technical Specifications

• Product ID: 5SGA15F2502
• Type: Asymmetric Gate Turn-Off Thyristor (GTO)
• VDRM (Repetitive Peak Off-State Voltage): 2500 V
• ITGQM (Peak Controllable Turn-Off Current): 1500 A
• Package Diameter: 75 mm
• Package Height: 26 mm
• Gross Weight: 0.6 kg
• Mounting Force: 15 kN
• Housing: Industry-standard round package
• Application Areas: Traction converters, industrial drives, power inverters
• Withstand Rating: High immunity to cosmic radiation

Applications

• High-Power Industrial Inverters: Essential for efficient energy conversion in heavy industry.
• Locomotive and Traction Systems: Drives electric trains and other heavy-duty transport.
• Electric Propulsion Systems: Crucial for powerful and reliable electric vehicle applications.
• Static VAR Compensators (SVCs): Enhances power quality and stability in electrical grids.
• Heavy-Duty DC Choppers: Regulates DC power in high-current applications.

Why Choose This Model?

Selecting the ABB 5SGA15F2502 GTO thyristor means investing in uncompromised quality and performance. Backed by ABB's long-standing reputation for semiconductor excellence, this model offers a distinct advantage:

• Proven ABB Semiconductor Quality: Reliability and performance you can trust from a global leader.
• Superior Current and Voltage Capability: Handles extreme power requirements with ease.
• Exceptional Efficiency: Maximizes power delivery while minimizing energy waste due to low losses.
• Robustness Redefined: Engineered for mechanical and thermal durability in harsh operating conditions.
• Designed for Demanding Environments: Compliant with the rigorous requirements of industrial applications.

Order Now

Elevate your high-power control systems with the ABB 5SGA15F2502 GTO thyristor. This premier component is readily available for immediate acquisition, offering a perfect blend of precision, durability, and high-performance capabilities for a diverse range of demanding applications. Benefit from ABB's cutting-edge technology and secure your supply today. Worldwide shipping is available to ensure your project stays on schedule.

Explore our extensive inventory of ABB Asymmetric GTO Thyristors and the complete ABB GTO Thyristor range, including symmetric, fast, and asymmetric models, to find the perfect solution for your specific needs.
