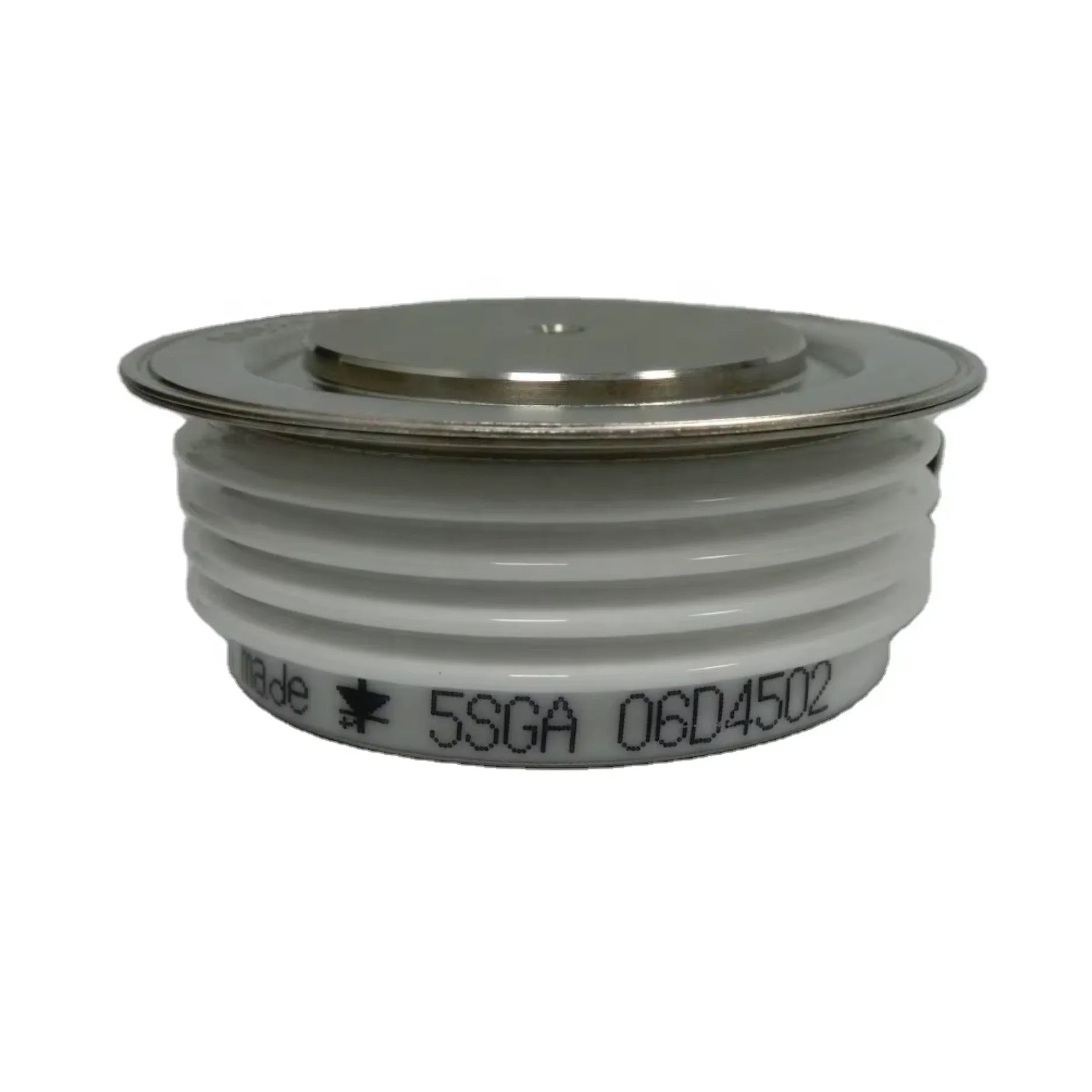

ABB 5SGA06D4502 GTO thyristor, 600 A 4500 V, central gate, asymmetric design, 60 mm round housing

ABB 5SGA06D4502

$693.00
$693.00
Skip to product information
ABB 5SGA06D4502 GTO thyristor, 600 A 4500 V, central gate, asymmetric design, 60 mm round housing
  • ABB 5SGA06D4502 GTO thyristor, 600 A 4500 V, central gate, asymmetric design, 60 mm round housing
  • ABB 5SGA06D4502 GTO thyristor, 600 A 4500 V, central gate, asymmetric design, 60 mm round housing
ABB 5SGA06D4502

ABB 5SGA06D4502

$693.00
$693.00

Overview

The ABB 5SGA06D4502 is a cutting-edge asymmetric Gate Turn-Off (GTO) thyristor engineered for demanding high-voltage environments. This advanced semiconductor device boasts an impressive 4500V blocking voltage and a continuous current rating of 600A, making it ideal for a multitude of industrial and power control applications. Utilizing ABB's patented free-floating silicon technology, the 5SGA06D4502 significantly minimizes both conduction and switching losses, leading to enhanced energy efficiency and reduced operational costs. Its robust design features a standard 60mm round package and a central gate electrode, ensuring exceptional mechanical reliability, superior thermal stability, and high resistance to radiation. This combination of innovative technology and durable construction guarantees long-term performance and reliability in even the most challenging conditions.

Key Features

  • High Current Rating: Designed for robust performance with a 600A rated current.
  • Exceptional Blocking Voltage: Reliable operation in high-voltage systems up to 4500V.
  • Central Gate Electrode: Facilitates optimized control and improved switching characteristics.
  • Patented Free-Floating Silicon Technology: Minimizes conduction and switching losses for superior energy efficiency.
  • High Mechanical Strength: Engineered for durability with an 11kN mounting force.
  • Radiation-Resistant Design: Ensures reliable operation in harsh environments.
  • Standard 60mm Round Housing: Offers ease of integration into existing systems.
  • Excellent Thermal and Electrical Performance: Guarantees stable and efficient operation under various loads.

Technical Specifications

  • Product ID: 5SGA06D4502
  • Type: Asymmetric Gate Turn-Off Thyristor (GTO)
  • ITGQM (Continous Current): 600A
  • VDRM (Blocking Voltage): 4500V
  • Package Diameter: 60mm
  • Package Height: 26mm
  • Gross Weight: 0.25kg
  • Mounting Force: 11kN
  • Gate Structure: Central gate
  • Housing Type: Industry-standard round
  • Design Features: Free-floating silicon, radiation withstanding

Applications

The versatility and high performance of the ABB 5SGA06D4502 make it an indispensable component across various demanding industrial sectors, including:

  • High-Voltage Industrial Inverters: Essential for efficient power conversion in heavy industrial machinery.
  • Power Converters and Choppers: Provides precise control and regulation of electrical power.
  • Traction and Railway Systems: Ensures reliable and efficient operation of transportation infrastructure.
  • Static Power Controllers: Offers stable and responsive power management solutions.
  • Custom High-Voltage Switching Solutions: Ideal for specialized applications requiring robust and efficient switching capabilities.

Why Choose This Model?

The ABB 5SGA06D4502 stands out as a premier choice for engineers and system integrators seeking unparalleled performance and reliability in high-voltage applications. With its ability to handle voltages up to 4500V, this GTO thyristor delivers exceptional power control. Its compact design allows for seamless integration into space-constrained systems without compromising on power or efficiency. As a product from ABB, a globally recognized leader in power and automation technologies, the 5SGA06D4502 comes with the assurance of proven reliability and superior performance that customers have come to expect. The innovative low-loss design translates into excellent energy efficiency, contributing to significant operational savings and a reduced environmental footprint. Furthermore, its robust construction is specifically engineered for rugged industrial environments, guaranteeing longevity and consistent performance under harsh conditions. Choosing the 5SGA06D4502 means investing in a high-quality, durable, and efficient solution that will power your critical systems effectively for years to come.

Order Now

The ABB 5SGA06D4502 GTO thyristor is readily available for immediate procurement and deployment in advanced high-voltage control systems worldwide. Enhance your power management solutions with this industry-leading component. For further information and to explore our comprehensive range, please refer to our ABB Asymmetric GTO Thyristors. Additionally, discover the complete spectrum of ABB GTO solutions, including symmetric, fast, and asymmetric models, by visiting our ABB GTO Thyristors – Symmetric, Fast & Asymmetric Models page.
